Accelerator pedal/bowden cable for BMW 3 Series E21 323i (1979)

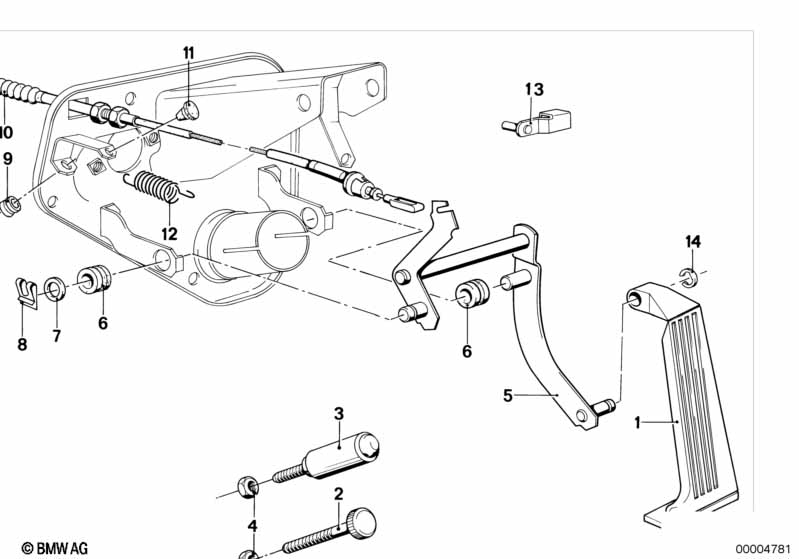

This Accelerator pedal/bowden cable technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator pedal assy | 1 | 35411105414 | $24.55 | Shop at ECS Tuning | |||||
| 02 | Knurled bolt | M8X71MM | 1 | 35411157679 | $1.17 | Shop at ECS Tuning | ||||
| 02 | Knurled bolt | M8X71MM | 1 | 08/1977 | 35411157679 | $1.17 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-05-ZNNIV SI | 1 | 08/1977 | 07119904948 | $1.00 | Shop at ECS Tuning | |||
| 05 | Lever | 1 | 35411116018 | $15.05 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bushing | 2 | 35414640194 | $3.09 | Shop at ECS Tuning | |||||
| 07 | Washer | 10-200 HV-ZNNIV | 1 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 08 | Clamp | 1 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| 09 | Grommet | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 10 | Bowden cable | 1 | 35411121007 | $33.52 | Shop at ECS Tuning | |||||
| 11 | Stopper | 1 | 35412458002 | ENDED | Shop at ECS Tuning | |||||
| 12 | Tension spring | 1 | 35411114451 | $3.85 | ENDED | Shop at ECS Tuning | ||||
| 14 | Circlip | 8,0 | 1 | 07119932863 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Accelerator pedal/bowden cable?
- This technical diagram illustrates the Accelerator pedal/bowden cable within the Pedals group for the 3 Series E21 323i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Accelerator pedal assy (Part #35411105414).
- Which models use the hardware listed in this Accelerator pedal/bowden cable?
- The hardware and components featured in the Accelerator pedal/bowden cable are specific to the 3 Series E21 323i produced during 1979. These technical specifications ensure that parts like the Accelerator pedal assy (35411105414) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accelerator pedal/bowden cable assembly?
- Each item in the Accelerator pedal/bowden cable corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Accelerator pedal assy by locating its position on the schematic, which then links to the official BMW part number 35411105414 for the Pedals section.
