Accelerator pedal - stopper for BMW 5 Series E12 528 (1976)

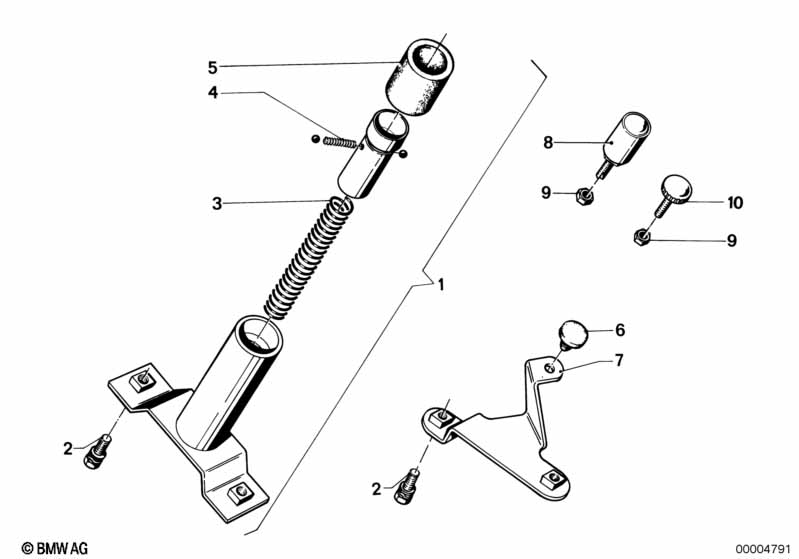

This Accelerator pedal - stopper technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stopper | 1 | 35411106614 | $24.55 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M6X12-Z3-2 | 2 | 07119915014 | $3.47 | ENDED | Shop at ECS Tuning | |||
| 03 | Compression spring | 1 | 35411103782 | ENDED | Shop at ECS Tuning | |||||
| 04 | Compression spring | 1 | 35411100763 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 05 | Dust protection | 1 | 35411100766 | ENDED | Shop at ECS Tuning | |||||
| 06 | Clutch pedal stop buffer | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 07 | Stopper | 1 | 35411115501 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex nut | M8 | 1 | 35411122039 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Accelerator pedal - stopper?
- This technical diagram illustrates the Accelerator pedal - stopper within the Pedals group for the 5 Series E12 528 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Stopper (Part #35411106614).
- Which models use the hardware listed in this Accelerator pedal - stopper?
- The hardware and components featured in the Accelerator pedal - stopper are specific to the 5 Series E12 528 produced during 1976. These technical specifications ensure that parts like the Stopper (35411106614) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accelerator pedal - stopper assembly?
- Each item in the Accelerator pedal - stopper corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Stopper by locating its position on the schematic, which then links to the official BMW part number 35411106614 for the Pedals section.
