Accelerator pedal/rod assy for BMW 5 Series E12 530i (1976)

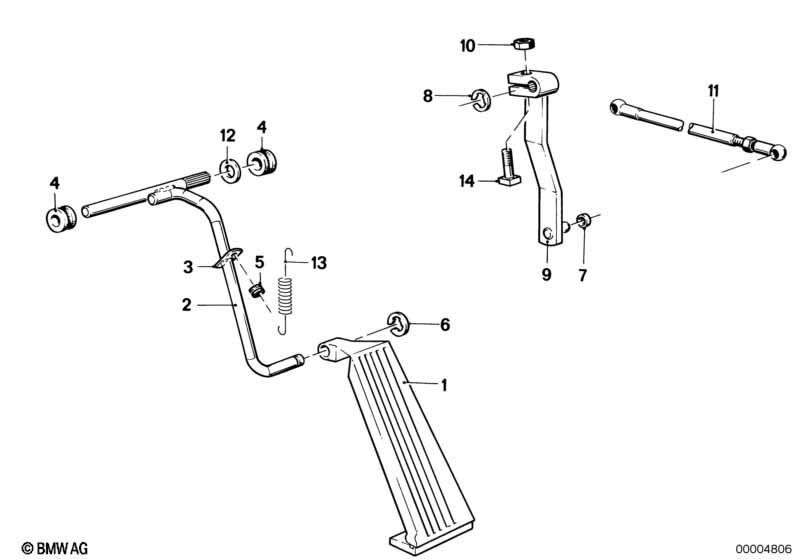

This Accelerator pedal/rod assy technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator pedal assy | 1 | 35411105414 | $24.55 | Shop at ECS Tuning | |||||
| 02 | Lever | 1 | 35411150502 | $5.83 | Shop at ECS Tuning | |||||
| 03 | Shackle | 1 | 35411102186 | $0.75 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bushing | 2 | 35414640194 | $3.09 | Shop at ECS Tuning | |||||
| 05 | Grommet | D=7,5MM | 2 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 06 | Circlip | 8,0 | 1 | 07119932863 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Plastic bush | 2 | 23417650149 | $1.20 | Shop at ECS Tuning | |||||
| 08 | Circlip | 7,0 | 1 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Lever | 1 | 35411113233 | $9.30 | ENDED | Shop at ECS Tuning | ||||
| 10 | Self-locking hex nut | M6-10 ZN | 1 | 07/1981 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 10 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Rod | 1 | 35411107644 | $16.09 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | 10-200 HV-ZNNIV | 1 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 13 | Tension spring | 1 | 35411106272 | $15.03 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M6X28-8.8-ZNS | 1 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 14 | Square headed bolt | 1 | 35411117743 | $3.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 530i Accelerator pedal/rod assy?
- This technical diagram illustrates the Accelerator pedal/rod assy within the Pedals group for the 5 Series E12 530i produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Accelerator pedal assy (Part #35411105414).
- Which models use the hardware listed in this Accelerator pedal/rod assy?
- The hardware and components featured in the Accelerator pedal/rod assy are specific to the 5 Series E12 530i produced during 1976. These technical specifications ensure that parts like the Accelerator pedal assy (35411105414) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accelerator pedal/rod assy assembly?
- Each item in the Accelerator pedal/rod assy corresponds to the numbered list below the illustration. For the 5 Series E12 530i, you can identify the Accelerator pedal assy by locating its position on the schematic, which then links to the official BMW part number 35411105414 for the Pedals section.
