Accelerator pedal/bowden cable for BMW 7 Series E23 732i (1986)

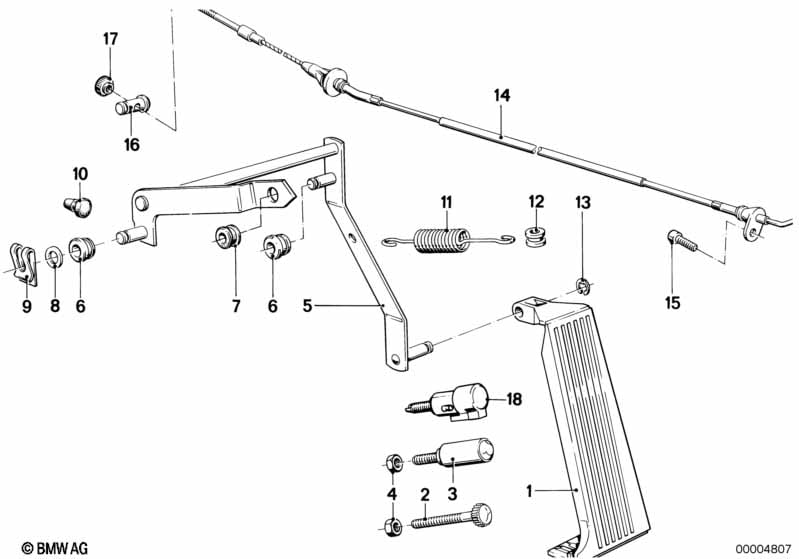

This Accelerator pedal/bowden cable technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator pedal assy | 1 | 09/1980 | 35411118210 | $24.36 | Shop at ECS Tuning | ||||
| 02 | Knurled bolt | M8X71MM | 1 | 09/1980 | 35411157679 | $1.17 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-05-ZNNIV SI | 1 | 09/1980 | 07119904948 | $1.00 | Shop at ECS Tuning | |||
| 05 | Lever | 1 | 09/1980 | 35411152335 | $22.52 | ENDED | Shop at ECS Tuning | |||
| 06 | Bushing | D=10,2MM | 2 | 09/1980 | 35411119016 | $0.65 | Shop at ECS Tuning | |||
| 07 | Rubber grommet | D=10MM | 1 | 09/1980 | 35411152331 | $1.17 | Shop at ECS Tuning | |||
| 08 | Washer | 10-200 HV-ZNNIV | 1 | 09/1980 | 07119904168 | $8.35 | Shop at ECS Tuning | |||
| 09 | Clamp | 1 | 09/1980 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | |||
| 10 | Clutch pedal stop buffer | 1 | 09/1980 | 35311103849 | $0.73 | Shop at ECS Tuning | ||||
| 11 | Tension spring | 1 | 09/1980 | 35411106273 | $1.38 | Shop at ECS Tuning | ||||
| 12 | Grommet | D=7,5MM | 2 | 09/1980 | 35411113728 | $0.57 | Shop at ECS Tuning | |||
| 13 | Circlip | 8,0 | 1 | 09/1980 | 07119932863 | $0.11 | Shop at ECS Tuning | |||
| 14 | Bowden cable | 1 | 09/1980 | 35411152313 | $31.38 | Shop at ECS Tuning | ||||
| 15 | Fillister-head screw | M6X18 | 1 | 09/1980 | 07119919781 | ENDED | Shop at ECS Tuning | |||
| 16 | Pin | 1 | 09/1980 | 35411152372 | $1.66 | Shop at ECS Tuning | ||||
| 17 | Knurled head nut | M3 | 1 | 09/1980 | 35411156139 | $2.02 | Shop at ECS Tuning |
