Accelerator pedal/bowden cable for BMW 7 Series E23 732i (1982)

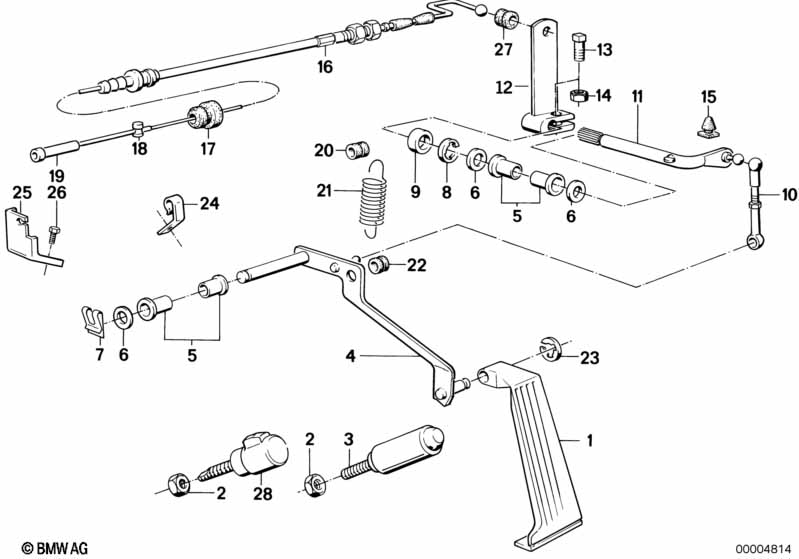

This Accelerator pedal/bowden cable technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator pedal assy | 1 | 09/1980 | 35411118210 | $24.36 | Shop at ECS Tuning | ||||
| 02 | Hex nut | M8-05-ZNNIV SI | 1 | 09/1980 | 07119904948 | $1.00 | Shop at ECS Tuning | |||
| 04 | Lever | 1 | 09/1980 | 35411152705 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bushing | D=10MM | 4 | 09/1980 | 35411100674 | $0.80 | Shop at ECS Tuning | |||
| 06 | Washer | 10-200HV-ZNNIV | 3 | 09/1980 | 07119907114 | Shop at ECS Tuning | ||||
| 07 | Clamp | 1 | 09/1980 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | |||
| 08 | Circlip | 8,0 | 1 | 09/1980 | 07119932863 | $0.11 | Shop at ECS Tuning | |||
| 09 | Spacer bush | GRAENGES | 1 | 09/1980 | 72111815729 | $0.57 | Shop at ECS Tuning | |||
| 10 | Rod | 1 | 09/1980 | 35411152709 | ENDED | Shop at ECS Tuning | ||||
| 11 | Lever | 1 | 09/1980 | 35411152707 | ENDED | Shop at ECS Tuning | ||||
| 12 | Lever | 1 | 09/1980 | 35411150727 | ENDED | Shop at ECS Tuning | ||||
| 13 | Square headed bolt | 1 | 09/1980 | 35411117743 | $3.53 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M6-10 ZN | 1 | 09/1980 | 05/1986 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | |
| 14 | Self-locking hex nut | M6 ZNNIV SI | 1 | 09/1980 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 15 | Stopper | 1 | 09/1980 | 35412458002 | ENDED | Shop at ECS Tuning | ||||
| 16 | Accelerator bowden cable | 1 | 09/1980 | 35411154945 | $30.69 | ENDED | Shop at ECS Tuning | |||
| 17 | Grommet | 1 | 09/1980 | 35411152744 | $3.48 | Shop at ECS Tuning | ||||
| 18 | Pin | 1 | 09/1980 | 35411152372 | $1.66 | Shop at ECS Tuning | ||||
| 19 | Knurled head nut | M3 | 1 | 09/1980 | 35411156139 | $2.02 | Shop at ECS Tuning | |||
| 20 | Grommet | 1 | 09/1980 | 35311113725 | $0.72 | Shop at ECS Tuning | ||||
| 21 | Tension spring | 1 | 09/1980 | 35411116440 | Shop at ECS Tuning | |||||
| 22 | Grommet | 1 | 09/1980 | 35311113725 | $0.72 | Shop at ECS Tuning | ||||
| 23 | Circlip | 8,0 | 1 | 09/1980 | 07119932863 | $0.11 | Shop at ECS Tuning | |||
| 24 | Holder | 1 | 09/1980 | 35411152711 | ENDED | Shop at ECS Tuning | ||||
| 25 | Bracket | 1 | 09/1980 | 35411152740 | ENDED | Shop at ECS Tuning | ||||
| 26 | Hex bolt | M6X12 | 1 | 09/1980 | 07119913013 | $1.22 | Shop at ECS Tuning | |||
| 27 | Rubber grommet | D=10MM | 1 | 09/1980 | 35411152331 | $1.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
