Accelerator pedal/bowden cable for BMW 5 Series E34 525i (1995)

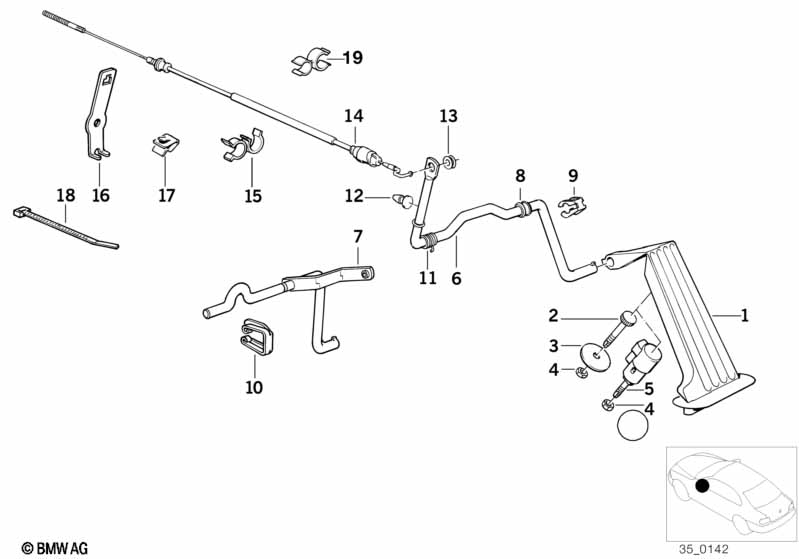

This Accelerator pedal/bowden cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Accelerator pedal assy | 1 | 35411154936 | $26.33 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Stopper | 1 | 35411119010 | $29.33 | Shop at ECS Tuning | |||||
| For vehicles with National version japan ONLY APPLIES TO EH-CONTROL |
L807A=Yes |
|||||||||
| 05 | Kick-down switch | 1 | 35421180441 | $29.92 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Shaft, accelerator pedal | 1 | 09/1991 | 35411160974 | $17.55 | Shop at ECS Tuning | ||||
| 08 | Bushing | D=12,2MM | 2 | 35411154172 | $0.52 | Shop at ECS Tuning | ||||
| 09 | Clamping spring | 1 | 35411155837 | $0.80 | Shop at ECS Tuning | |||||
| 11 | Retainer spring | 1 | 35411155836 | $1.17 | ENDED | Shop at ECS Tuning | ||||
| 12 | Clutch pedal stop buffer | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 13 | Rubber grommet | D=10MM | 1 | 35411152331 | $1.17 | Shop at ECS Tuning | ||||
| 14 | Bowden cable | 1 | 09/1990 | 35411160609 | $31.52 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
