Pedals/stop light switch for BMW 5 Series E34 520i (1993)

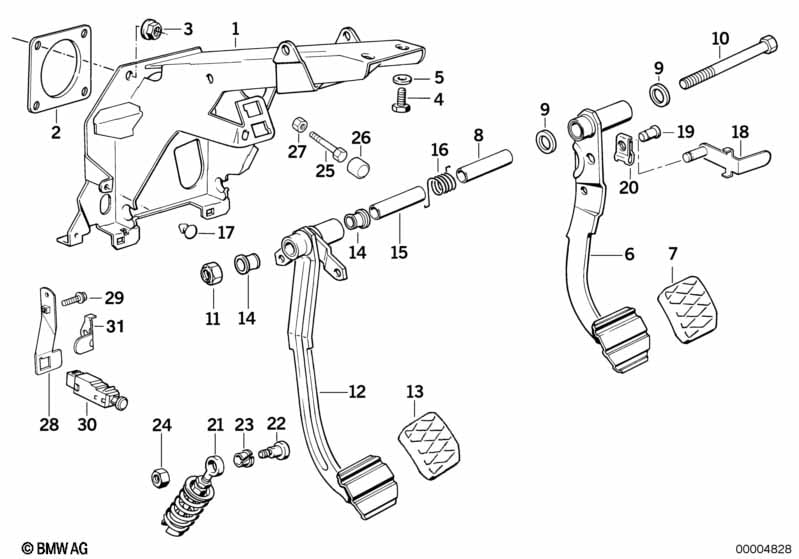

This Pedals/stop light switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket, foot controls | 1 | 35111160238 | $61.10 | Shop at ECS Tuning | |||||
| 02 | Gasket | 1 | 35111150370 | $0.95 | Shop at ECS Tuning | |||||
| 03 | Self-locking collar nut | M8-8-ZNS3 | 5 | 07/2007 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 5 | 07119905374 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X20-ZNNIV SI | 4 | 07119903039 | Shop at ECS Tuning | |||||
| 05 | Washer | A8,4 | 4 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Brake lever | 1 | 35211160949 | $33.20 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rubber pad | B=100MM | 1 | 35211160421 | $4.47 | Shop at ECS Tuning | ||||
| 07 | Rubber pad | B=100MM | 1 | 01/1991 | 35211160421 | $4.47 | Shop at ECS Tuning | |||
| 08 | Spacer sleeve | 14X70,5MM | 1 | 35211157232 | Shop at ECS Tuning | |||||
| 09 | Shim | 14,2X25X1,5 | 2 | 35211156993 | $0.48 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M10X90 | 1 | 07119900237 | $1.98 | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Pin | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 20 | Clamp | 1 | 34331120538 | $0.60 | Shop at ECS Tuning | |||||
| 25 | Hex bolt | M6X35 | 1 | 07119913579 | $0.24 | Shop at ECS Tuning | ||||
| 26 | Stopper | 1 | 35211158114 | $0.66 | Shop at ECS Tuning | |||||
| 27 | Hex nut | M6-04-2-ZN | 1 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
