Parking brake pedal for BMW 7 Series E38 750i (1998)

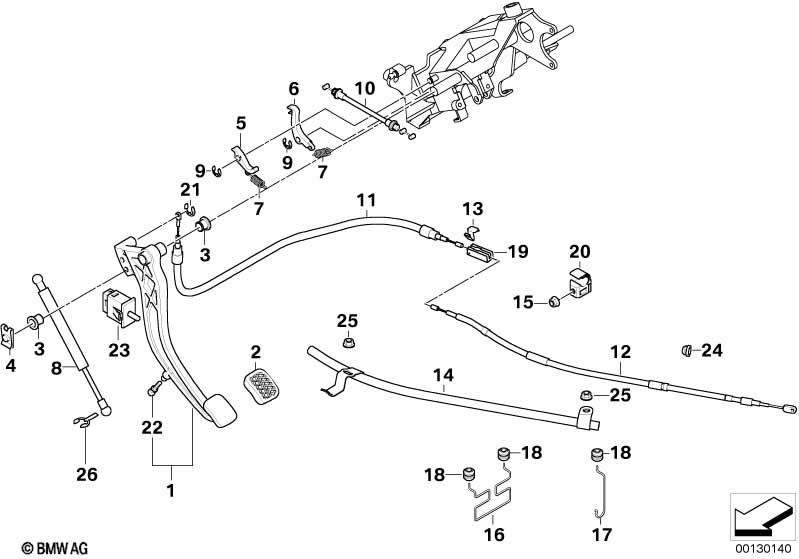

This Parking brake pedal technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Parking brake pedal lever | 1 | 11/1997 | 35511165454 | Shop at ECS Tuning | |||||
| 02 | Rubber pad | 1 | 35511161137 | $4.47 | Shop at ECS Tuning | |||||
| 03 | Bushing | 2 | 35211158290 | $1.52 | Shop at ECS Tuning | |||||
| 04 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Ratched-pin | 1 | 35511161138 | $2.18 | Shop at ECS Tuning | |||||
| 06 | Lever | 1 | 09/1994 | 35511162558 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Tension spring | 2 | 35511162021 | $0.50 | Shop at ECS Tuning | |||||
| 08 | Absorber | D=10MM | 1 | 11/1997 | 35511165407 | $34.59 | Shop at ECS Tuning | |||
| 09 | Circlip | 6,0-ZNS3 | 2 | 07119905695 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Bowden cable f releasing mechanism | 1 | 35511161728 | Shop at ECS Tuning | ||||||
| 11 | Parking brake pedal bowden cable | L=2040MM | 1 | 35511161735 | Shop at ECS Tuning | |||||
| 12 | Left parking brake pedal bowden cable | 1 | 35511161473 | $43.62 | Shop at ECS Tuning | |||||
| 12 | Right parking brake pedal bowden cable | 1 | 35511161474 | $32.88 | Shop at ECS Tuning | |||||
| 13 | Clamp | 1 | 35511162903 | $0.57 | Shop at ECS Tuning | |||||
| 14 | Pipe | 1 | 35511161475 | $39.33 | Shop at ECS Tuning | |||||
| 15 | Self-locking collar nut | M8-10 ZNS3 | 1 | 07119905374 | Shop at ECS Tuning | |||||
| 16 | Support | 1 | 35511161792 | $2.03 | Shop at ECS Tuning | |||||
| 17 | Hook | 1 | 34411152228 | $0.88 | Shop at ECS Tuning | |||||
| 18 | Grommet | 3 | 34411102688 | $2.83 | ENDED | Shop at ECS Tuning | ||||
| 19 | Connection piece | 1 | 35511161500 | $2.92 | Shop at ECS Tuning | |||||
| 20 | Pipe clamp | 1 | 35511161876 | $0.72 | Shop at ECS Tuning | |||||
| 21 | Circlip | D8,0 | 1 | 07129934208 | $0.87 | Shop at ECS Tuning | ||||
| 22 | Ball pin | D=10MM/M6 | 1 | 11/1997 | 07119901557 | $2.23 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Parking brake pedal lever | X | 11/1997 | 35511165453 | $33.52 | Shop at ECS Tuning | ||||
| -- | Parking brake pedal lever | X | 11/1997 | 35511165454 | Shop at ECS Tuning | |||||
| 23 | Switch | 1 | 61311388277 | ENDED | Shop at ECS Tuning | |||||
| 24 | Rubber grommet | D=22MM | 1 | 34411160117 | $1.03 | Shop at ECS Tuning | ||||
| REAR AXLE CARRIER | ||||||||||
| 25 | Self-locking hex nut | M8 | 2 | 35511163112 | $9.43 | Shop at ECS Tuning | ||||
