Accelerator pedal/bowden cable for BMW 7 Series E38 740i (1998)

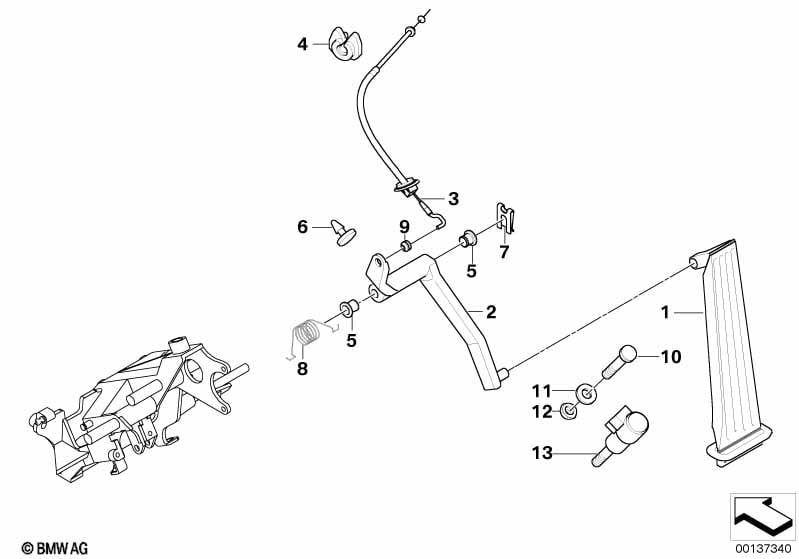

This Accelerator pedal/bowden cable technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator pedal assy | 1 | 09/1998 | 35411161723 | $26.33 | Shop at ECS Tuning | ||||
| 02 | Shaft, accelerator pedal | 1 | 09/1998 | 35411161724 | $12.08 | Shop at ECS Tuning | ||||
| 03 | Accelerator bowden cable | 1 | 09/1998 | 35411161726 | $26.57 | Shop at ECS Tuning | ||||
| 05 | Bushing | D=10MM | 2 | 09/1998 | 35411100674 | $0.80 | Shop at ECS Tuning | |||
| 06 | Clutch pedal stop buffer | 1 | 09/1998 | 35311103849 | $0.73 | Shop at ECS Tuning | ||||
| 07 | Fuse | B10-ZNS3 | 1 | 09/1998 | 07129904567 | $0.40 | Shop at ECS Tuning | |||
| 08 | Retainer spring | 1 | 09/1998 | 35411161562 | $1.17 | Shop at ECS Tuning | ||||
| 09 | Rubber grommet | D=10MM | 1 | 09/1998 | 35411152331 | $1.17 | Shop at ECS Tuning | |||
| 13 | Kick-down switch | 1 | 09/1998 | 35421181103 | $29.92 | Shop at ECS Tuning |
