Pedals/stop light switch for BMW 3 Series E30 325e (1987)

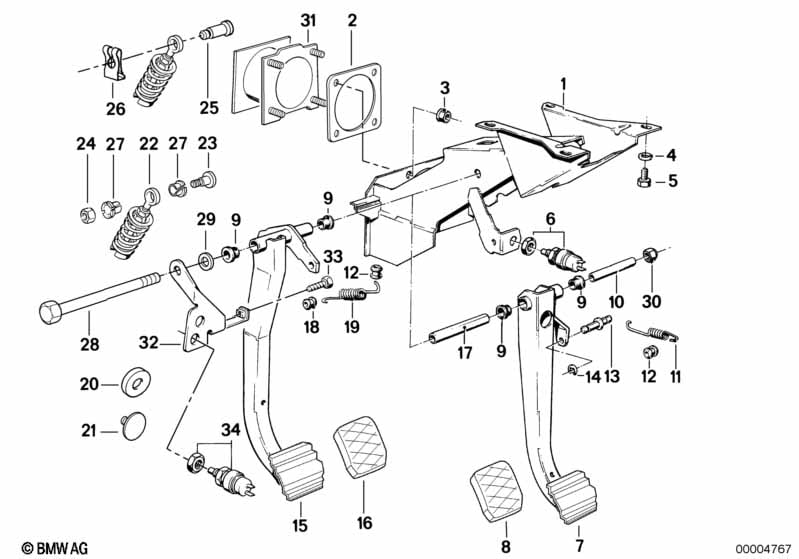

This Pedals/stop light switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Supporting bracket, foot controls | 1 | 35111157719 | $41.61 | Shop at ECS Tuning | |||||
| 02 | Gasket | 1 | 35111150370 | $0.95 | Shop at ECS Tuning | |||||
| 03 | Self-locking collar nut | M8-8-ZNS | 4 | 07/2007 | 31331092887 | $0.58 | ENDED | Shop at ECS Tuning | ||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 04 | Washer | A8,4 | 2 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X22-SB-Z4 | 2 | 07119915160 | ENDED | Shop at ECS Tuning | ||||
| 06 | Stop light switch | 2-POLIG | 1 | 09/1986 | 61318360420 | $32.07 | Shop at ECS Tuning | |||
| 08 | Rubber pad | B=108MM | 1 | 35211113906 | $14.86 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Brake pedal | X | 35211155018 | $24.91 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bushing | D=18,1MM | 2 | 35211109541 | $1.84 | Shop at ECS Tuning | ||||
| 10 | Spacer sleeve | 14 X1,8 X70,5MM | 2 | 35211150346 | $2.58 | ENDED | Shop at ECS Tuning | |||
| 11 | Tension spring | 1 | 35211152371 | $11.53 | Shop at ECS Tuning | |||||
| 12 | Grommet | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Pin | 1 | 34311152270 | $2.07 | Shop at ECS Tuning | |||||
| 14 | Clamp | 1 | 34331120538 | $0.60 | Shop at ECS Tuning | |||||
| 28 | Hex bolt | M10X90 | 1 | 07119900237 | $1.98 | Shop at ECS Tuning | ||||
| 30 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
