Pedals-supporting bracket for BMW 1502-2002tii 2002 (1975)

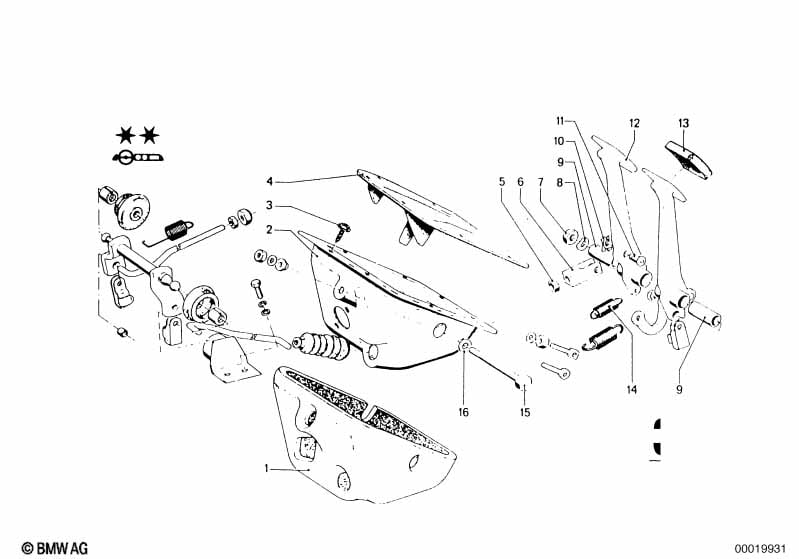

This Pedals-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Supporting bracket | HYDRAULISCH | 1 | 35111101550 | $367.39 | ENDED | Shop at ECS Tuning | |||
| 03 | Sheet metal screw | B6,5X16 | 10 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 04 | Sound absorber | 1 | 35114440140 | $27.21 | +core | Shop at ECS Tuning | ||||
| 06 | Forkhead | L=44MM | 1 | 35211154097 | $2.77 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 09 | Bushing | 2 | 35214045707 | $2.18 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamp | 1 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pin | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 12 | Brake lever | 1 | 35211100501 | ENDED | Shop at ECS Tuning | |||||
| 13 | Rubber pad | 2 | 35214440113 | $6.00 | Shop at ECS Tuning | |||||
| 14 | Tension spring | 1 | 35211103886 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M10X100-10.9PHR | 1 | 07119912710 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Pedals-supporting bracket?
- This technical diagram illustrates the Pedals-supporting bracket within the Pedals group for the 1502-2002tii 2002 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #35111101550).
- Which models use the hardware listed in this Pedals-supporting bracket?
- The hardware and components featured in the Pedals-supporting bracket are specific to the 1502-2002tii 2002 produced during 1975. These technical specifications ensure that parts like the Supporting bracket (35111101550) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals-supporting bracket assembly?
- Each item in the Pedals-supporting bracket corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 35111101550 for the Pedals section.
