Pedals-supporting bracket/clutch pedal for BMW 1502-2002tii 2002 (1973)

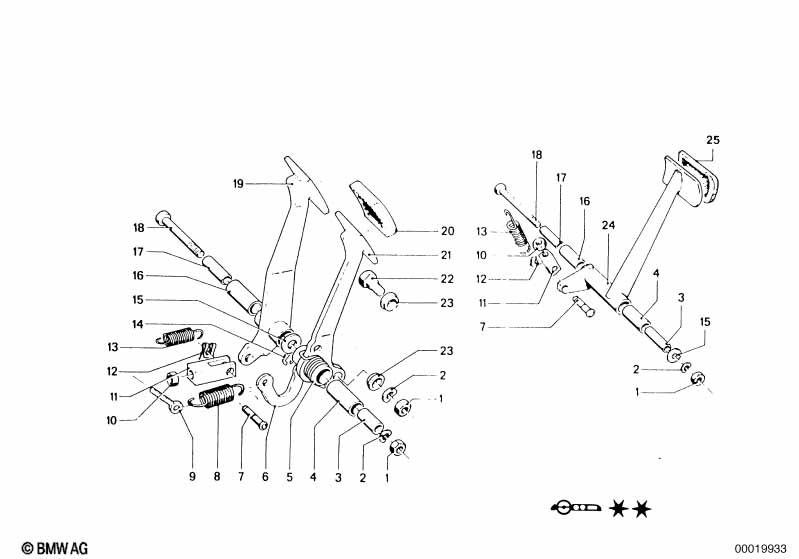

This Pedals-supporting bracket/clutch pedal technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Self-locking hex nut | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Spacer sleeve | 1 | 35314041718 | $5.45 | Shop at ECS Tuning | |||||
| 04 | Bushing | 1 | 35214640103 | $2.32 | Shop at ECS Tuning | |||||
| 05 | Retainer spring | 1 | 03/1966 | 07/1977 | 35311104531 | $4.86 | Shop at ECS Tuning | |||
| 06 | Shackle | 1 | 03/1966 | 07/1977 | 35314440119 | $46.91 | ENDED | Shop at ECS Tuning | ||
| 07 | Pin | 1 | 35211110926 | $16.14 | ENDED | Shop at ECS Tuning | ||||
| 08 | Tension spring | 1 | 03/1966 | 07/1977 | 35314440118 | $7.38 | ENDED | Shop at ECS Tuning | ||
| 09 | Screw | 1 | 03/1966 | 07/1977 | 35314440114 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 11 | Forkhead | L=44MM | 1 | 35211154097 | $2.77 | Shop at ECS Tuning | ||||
| 12 | Circlip | 1 | 35211118373 | $0.57 | Shop at ECS Tuning | |||||
| 13 | Tension spring | 1 | 35211102383 | $3.80 | Shop at ECS Tuning | |||||
| 14 | Circlip | 7,0 | 1 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 15 | Washer | 2 | 35111100560 | ENDED | Shop at ECS Tuning | |||||
| 16 | Bushing | 1 | 35214045707 | $2.18 | ENDED | Shop at ECS Tuning | ||||
| 17 | Spacer sleeve | 1 | 35214045708 | $2.82 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M10X115 | 1 | 07119912716 | ENDED | Shop at ECS Tuning | ||||
| 19 | Brake lever | 1 | 35211100501 | ENDED | Shop at ECS Tuning | |||||
| 20 | Rubber pad | 2 | 35214440113 | $6.00 | Shop at ECS Tuning | |||||
| 21 | Clutch pedal | 1 | 03/1966 | 07/1977 | 35311103908 | ENDED | Shop at ECS Tuning | |||
| 22 | Fit bolt | 1 | 03/1966 | 07/1977 | 35314640115 | $5.24 | Shop at ECS Tuning | |||
| 23 | Bushing | 2 | 03/1966 | 07/1977 | 35314640116 | $1.20 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
