Accelerator pedal/rod assy for BMW 1502-2002tii 2002 (1971)

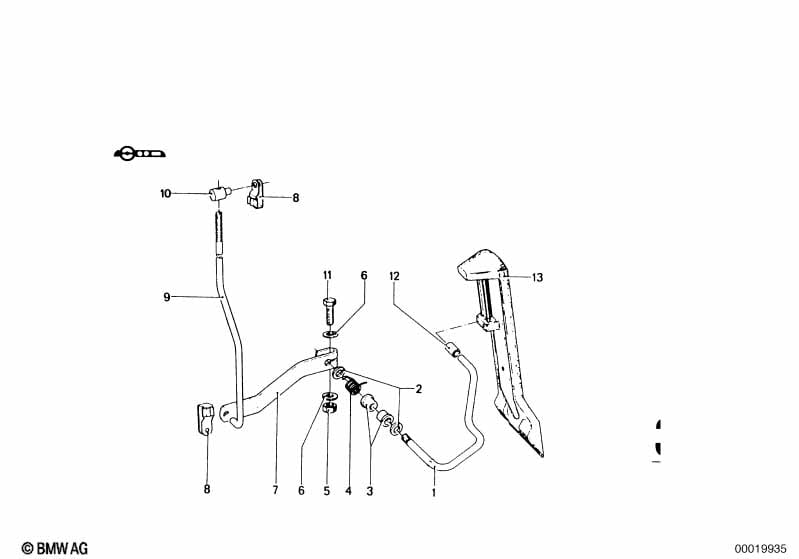

This Accelerator pedal/rod assy technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.

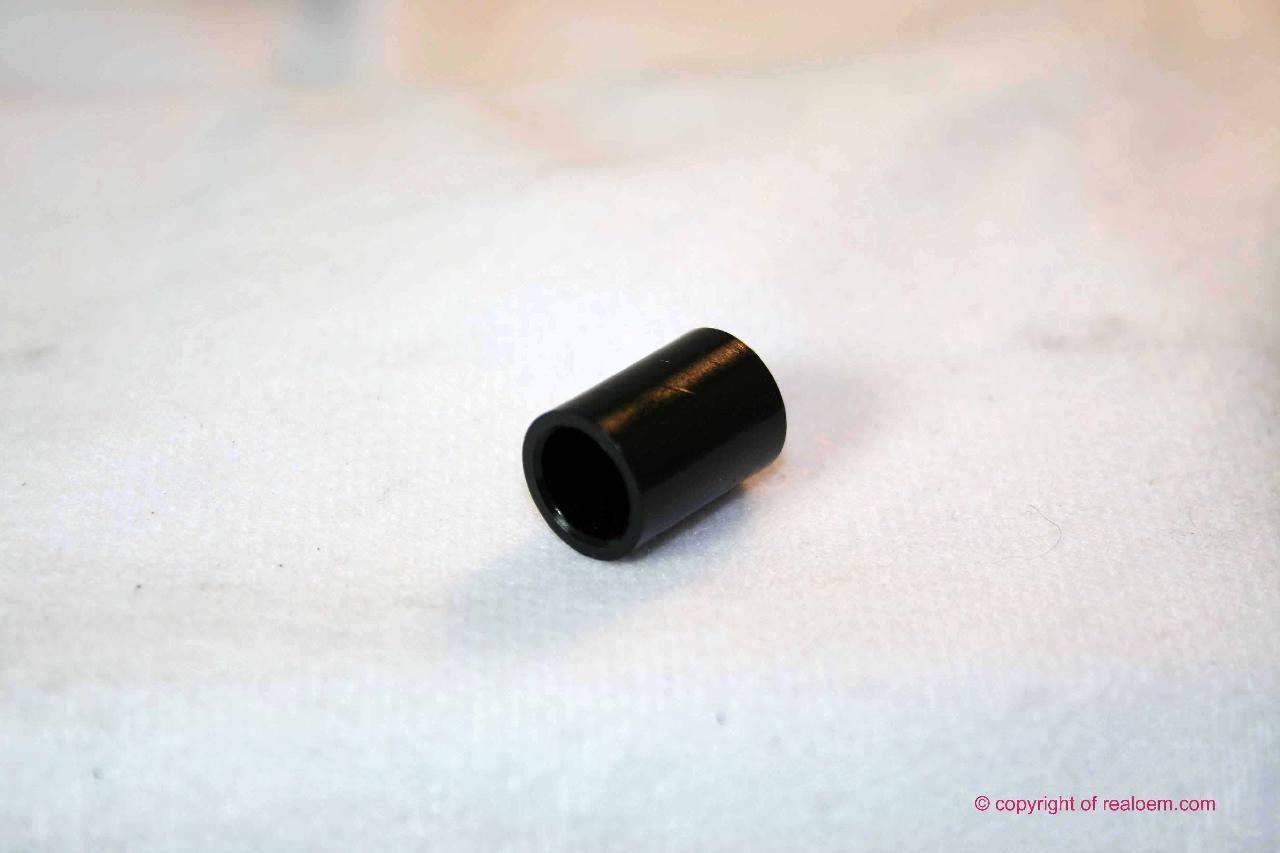

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft | 1 | 35414440121 | $32.85 | Shop at ECS Tuning | |||||
| 02 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 03 | Bush | 2 | 35411108237 | $1.87 | Shop at ECS Tuning | |||||
| 04 | Retainer spring | 1 | 35411108676 | $3.38 | Shop at ECS Tuning | |||||
| 06 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Lever | 1 | 35411110447 | $15.57 | ENDED | Shop at ECS Tuning | ||||
| 08 | Clip | 1 | 35411105778 | $7.38 | Shop at ECS Tuning | |||||
| 09 | Pull rod | 1 | 03/1966 | 07/1977 | 35414440125 | $31.00 | ENDED | Shop at ECS Tuning | ||
| 10 | Pin | 1 | 35414440133 | $7.05 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Bush | 1 | 35414440122 | $4.09 | Shop at ECS Tuning | |||||

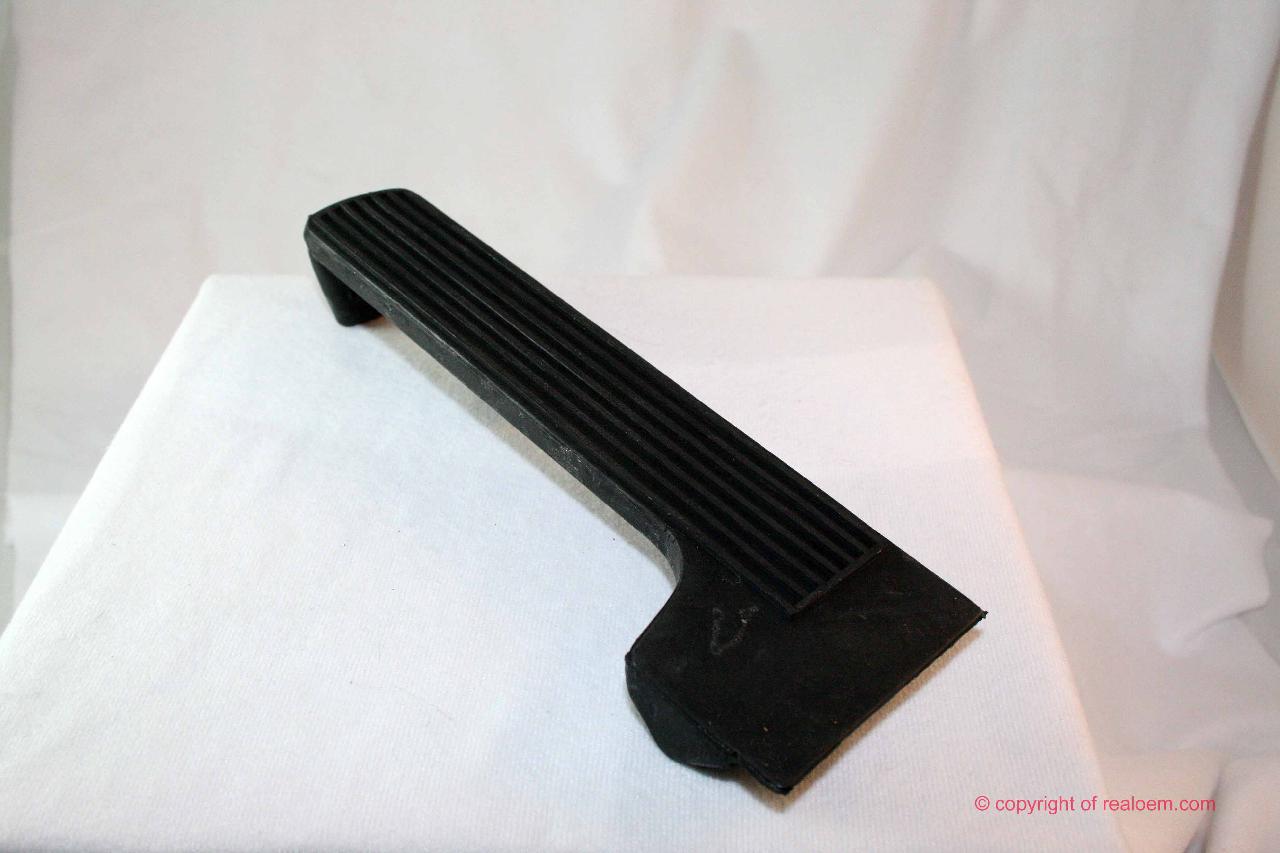

| 13 | Accelerator pedal assy | 1 | 35414440120 | $31.91 | ENDED | Shop at ECS Tuning |
