Accelerator pedal/rod assy for BMW 1502-2002tii 2002 (1972)

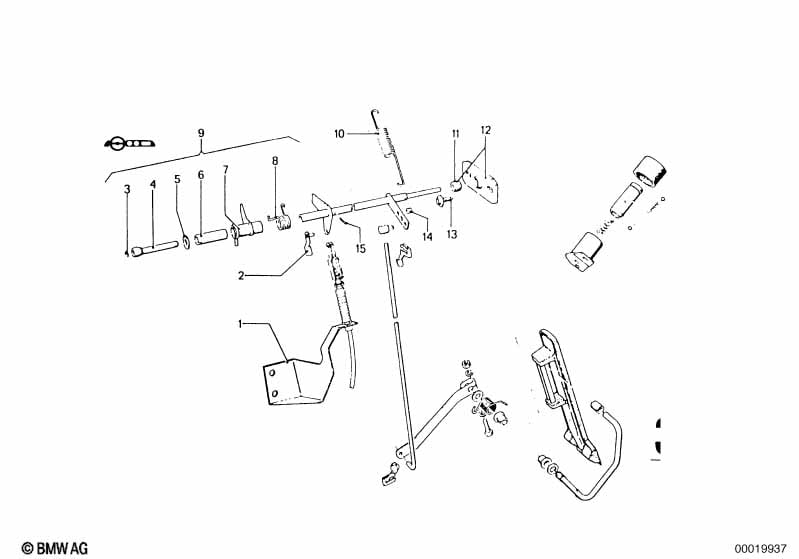

This Accelerator pedal/rod assy technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console | 1 | 35411200857 | ENDED | Shop at ECS Tuning | |||||
| 02 | Bolt | 1 | 24511201415 | $1.58 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock Ring | 1 | 35411100608 | $0.75 | Shop at ECS Tuning | |||||
| 04 | Ball joint | 1 | 35411201213 | ENDED | Shop at ECS Tuning | |||||
| 05 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 06 | Bush | 1 | 35411200856 | ENDED | Shop at ECS Tuning | |||||
| 07 | Bush | 1 | 05/1969 | 06/1975 | 35411201177 | ENDED | Shop at ECS Tuning | |||
| 08 | Retainer spring | 1 | 35411201200 | ENDED | Shop at ECS Tuning | |||||
| 09 | Shaft | 1 | 05/1969 | 08/1973 | 35411201212 | ENDED | Shop at ECS Tuning | |||
| 10 | Tension spring | 1 | 35411104043 | $6.73 | Shop at ECS Tuning | |||||
| 11 | Sliding piece | 1 | 35411103775 | ENDED | Shop at ECS Tuning | |||||
| 12 | Holder | 1 | 35411103778 | ENDED | Shop at ECS Tuning | |||||
| 13 | Sheet metal screw | B6,5X16 | 2 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 14 | Bush | 1 | 35411103893 | $3.77 | ENDED | Shop at ECS Tuning | ||||
| 15 | Roll pin | 2,5X10 | 1 | 07119941304 | $0.04 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
