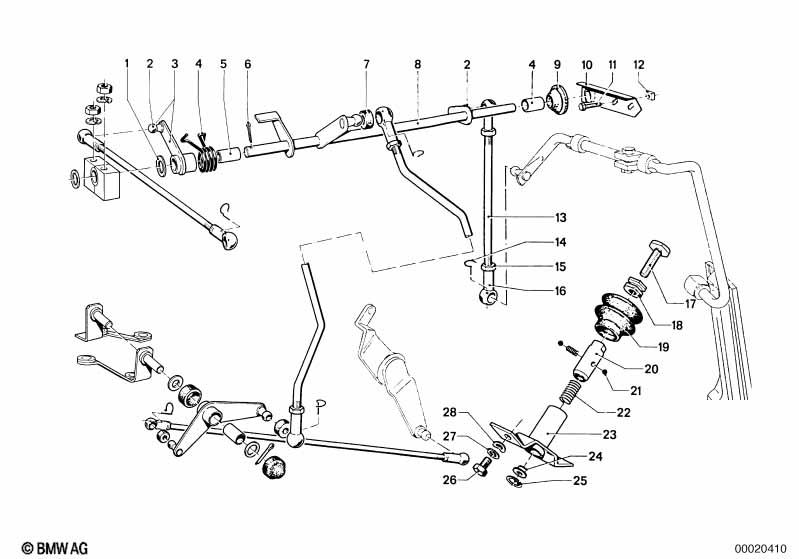

Accelerator pedal/rod assy for BMW 1500-2000CS 2000
This Accelerator pedal/rod assy technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 19 | Rubber boot | 1 | 35414640212 | ENDED | Shop at ECS Tuning | |||||
| 20 | Guide | 1 | 35414640202 | ENDED | Shop at ECS Tuning | |||||
| 21 | Ball | 5,5MM III | 2 | 07119986255 | $0.30 | Shop at ECS Tuning | ||||
| 22 | Compression spring | 1 | 35414640210 | ENDED | Shop at ECS Tuning | |||||
| 23 | Guide bush | 1 | 35414640200 | ENDED | Shop at ECS Tuning | |||||
| 25 | Lock Ring | 17X1 | 1 | 07119934620 | $1.29 | Shop at ECS Tuning | ||||
| 26 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 27 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
