Pedals-supporting bracket for BMW 2.5CS-3.0CSL 3.0CSi (1975)

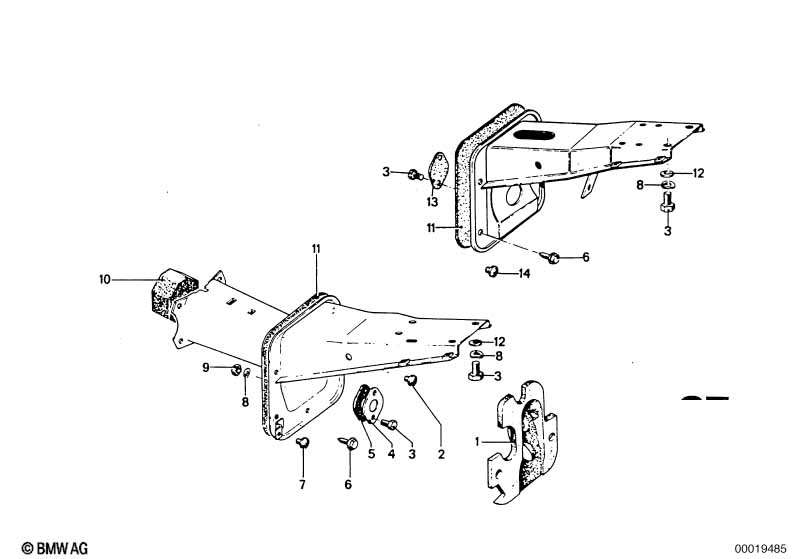

This Pedals-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Hex bolt | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | B6,5X16 | 6 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 08 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Gasket | 1 | 35111103543 | ENDED | Shop at ECS Tuning | |||||
| 12 | Washer | A8,4X25 | 2 | 07147201571 | $0.20 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSi Pedals-supporting bracket?
- This technical diagram illustrates the Pedals-supporting bracket within the Pedals group for the 2.5CS-3.0CSL 3.0CSi produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119913612).
- Which models use the hardware listed in this Pedals-supporting bracket?
- The hardware and components featured in the Pedals-supporting bracket are specific to the 2.5CS-3.0CSL 3.0CSi produced during 1975. These technical specifications ensure that parts like the Hex bolt (07119913612) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals-supporting bracket assembly?
- Each item in the Pedals-supporting bracket corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSi, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119913612 for the Pedals section.
