Pedals-supporting bracket for BMW 2.5CS-3.0CSL 3.0CS (1973)

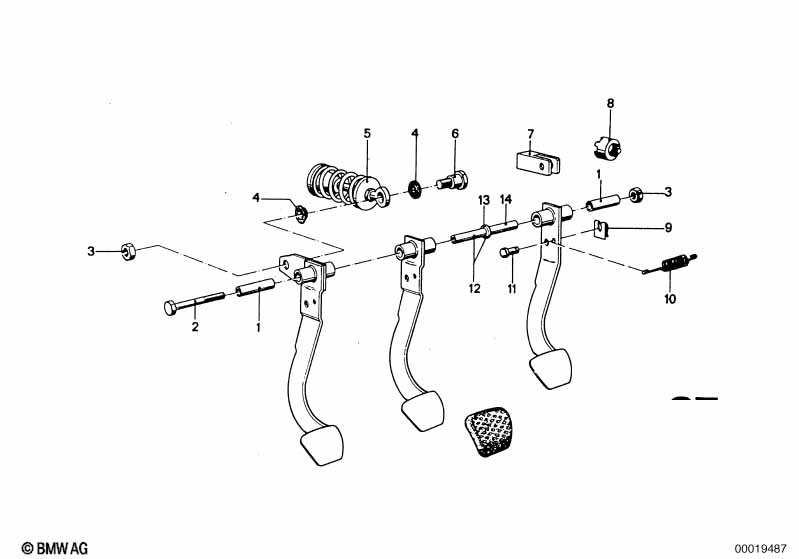

This Pedals-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bushing | 1 | 12/1968 | 11/1975 | 35211100716 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | M10X140 | 1 | 07119912733 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 07 | Forkhead | 1 | 12/1968 | 11/1975 | 34311112608 | $4.30 | Shop at ECS Tuning | |||

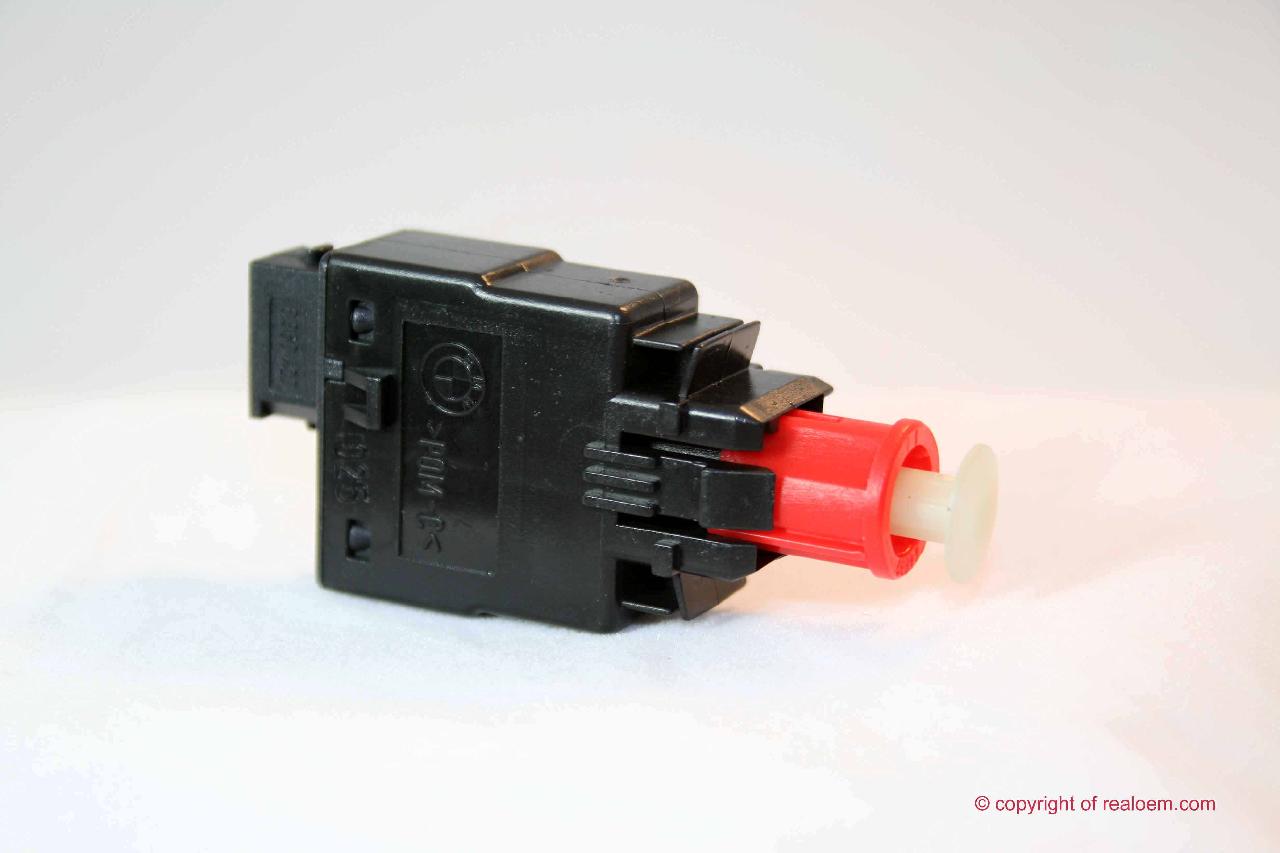

| 08 | Stop light switch | 2-POLIG | 1 | 12/1968 | 11/1975 | 61318360420 | $32.07 | Shop at ECS Tuning | ||
| 09 | Clamp | 1 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| 10 | Tension spring | 1 | 12/1968 | 11/1975 | 35211103906 | $2.43 | ENDED | Shop at ECS Tuning | ||
| 11 | Pin | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 12 | Sleeve | 1 | 35211100956 | $5.08 | ENDED | Shop at ECS Tuning | ||||
| 13 | Washer | 1 | 34111233020 | $3.75 | Shop at ECS Tuning |
