Pedals-supporting bracket for BMW 2.5CS-3.0CSL 3.0CS

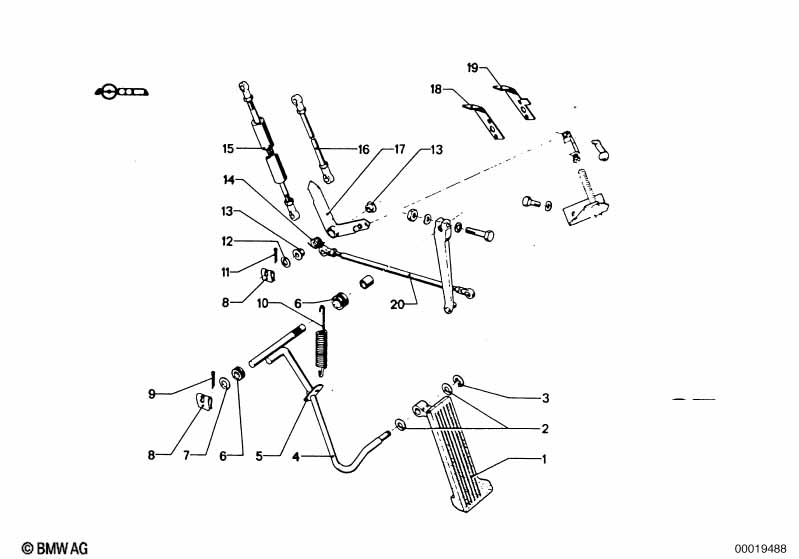

This Pedals-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 03 | Circlip | D8,0 | 1 | 07129934208 | $0.87 | Shop at ECS Tuning | ||||
| 10 | Tension spring | 1 | 04/1971 | 11/1975 | 35411106273 | $1.38 | Shop at ECS Tuning | |||
| 13 | Bushing | D=10MM | 2 | 12/1968 | 11/1975 | 35411100674 | $0.80 | Shop at ECS Tuning | ||
| 14 | Spring | 1 | 04/1971 | 11/1975 | 35411106271 | $8.04 | ENDED | Shop at ECS Tuning | ||
| 18 | Stopper | 1 | 04/1971 | 11/1975 | 35411108552 | ENDED | Shop at ECS Tuning | |||
| 20 | Rod | 1 | 35411113575 | $118.30 | ENDED | Shop at ECS Tuning | ||||
| 20 | Rod | 1 | 04/1971 | 11/1975 | 35411107644 | $16.09 | ENDED | Shop at ECS Tuning |
