Accelerator pedal - stopper for BMW 2.5CS-3.0CSL 3.0CSi (1973)

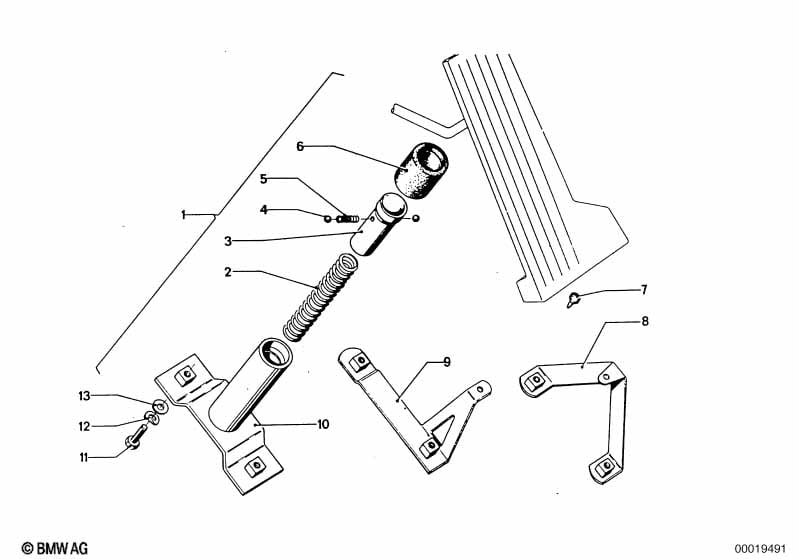

This Accelerator pedal - stopper technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 07 | Clutch pedal stop buffer | 1 | 04/1971 | 11/1975 | 35311103849 | $0.73 | Shop at ECS Tuning | |||
| 08 | Stopper | 1 | 04/1971 | 11/1975 | 35411109154 | ENDED | Shop at ECS Tuning | |||
| 11 | Hex bolt | M6X16-SB | 2 | 07119913554 | $4.40 | Shop at ECS Tuning | ||||
| 12 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 13 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSi Accelerator pedal - stopper?
- This technical diagram illustrates the Accelerator pedal - stopper within the Pedals group for the 2.5CS-3.0CSL 3.0CSi produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Clutch pedal stop buffer (Part #35311103849).
- Which models use the hardware listed in this Accelerator pedal - stopper?
- The hardware and components featured in the Accelerator pedal - stopper are specific to the 2.5CS-3.0CSL 3.0CSi produced during 1973. These technical specifications ensure that parts like the Clutch pedal stop buffer (35311103849) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accelerator pedal - stopper assembly?
- Each item in the Accelerator pedal - stopper corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSi, you can identify the Clutch pedal stop buffer by locating its position on the schematic, which then links to the official BMW part number 35311103849 for the Pedals section.
