Pedals-supporting bracket for BMW 2500-3.3Li 2800 (1971)

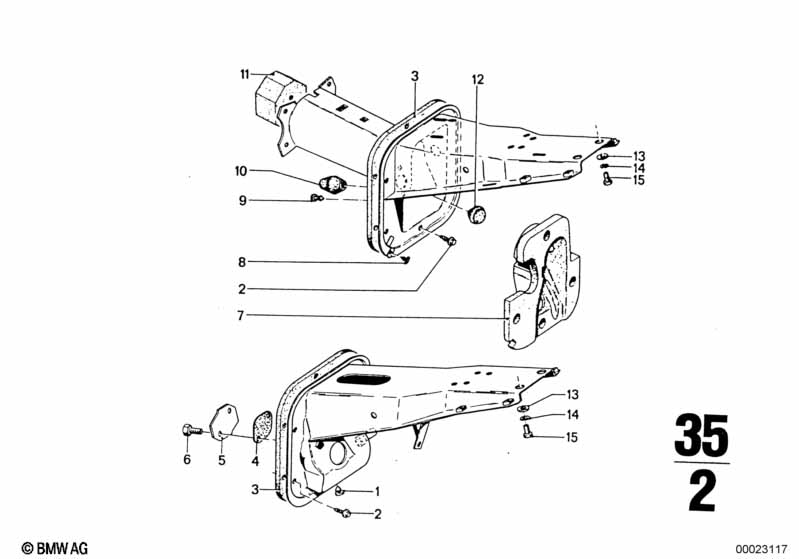

This Pedals-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Sheet metal screw | B6,5X16 | 6 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket | 1 | 35111103543 | ENDED | Shop at ECS Tuning | |||||
| 07 | Cap | 1 | 08/1968 | 02/1977 | 35111108673 | ENDED | Shop at ECS Tuning | |||
| 08 | Clutch pedal stop buffer | 1 | 08/1968 | 02/1977 | 35311103849 | $0.73 | Shop at ECS Tuning | |||
| 11 | Gasket | 1 | 08/1968 | 02/1977 | 35111101013 | $2.85 | ENDED | Shop at ECS Tuning | ||
| 13 | Washer | A8,4X25 | 2 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning |
