Pedals-supporting bracket/clutch pedal for BMW 2500-3.3Li 2800 (1975)

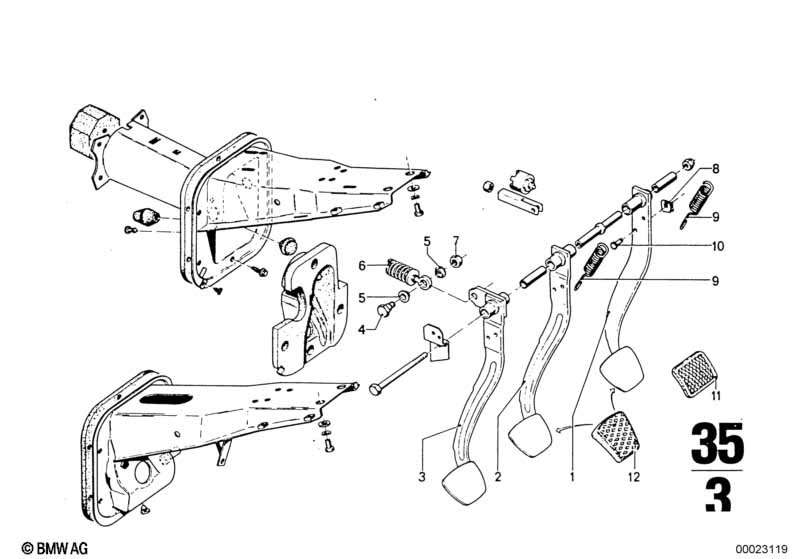

This Pedals-supporting bracket/clutch pedal technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake pedal | 1 | 02/1969 | 02/1977 | 35211103593 | ENDED | Shop at ECS Tuning | |||
| 01 | Brake pedal | 1 | 09/1973 | 02/1977 | 35211112266 | ENDED | Shop at ECS Tuning | |||
| 08 | Clamp | 1 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| 09 | Tension spring | 1 | 35211103906 | $2.43 | ENDED | Shop at ECS Tuning | ||||
| 10 | Pin | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 11 | Rubber pad | 1 | 02/1969 | 02/1977 | 35214540122 | $5.02 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Pedals-supporting bracket/clutch pedal?
- This technical diagram illustrates the Pedals-supporting bracket/clutch pedal within the Pedals group for the 2500-3.3Li 2800 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Brake pedal (Part #35211103593).
- Which models use the hardware listed in this Pedals-supporting bracket/clutch pedal?
- The hardware and components featured in the Pedals-supporting bracket/clutch pedal are specific to the 2500-3.3Li 2800 produced during 1975. These technical specifications ensure that parts like the Brake pedal (35211103593) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals-supporting bracket/clutch pedal assembly?
- Each item in the Pedals-supporting bracket/clutch pedal corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Brake pedal by locating its position on the schematic, which then links to the official BMW part number 35211103593 for the Pedals section.
