Accelerator pedal for BMW 2500-3.3Li 3.0Si (1973)

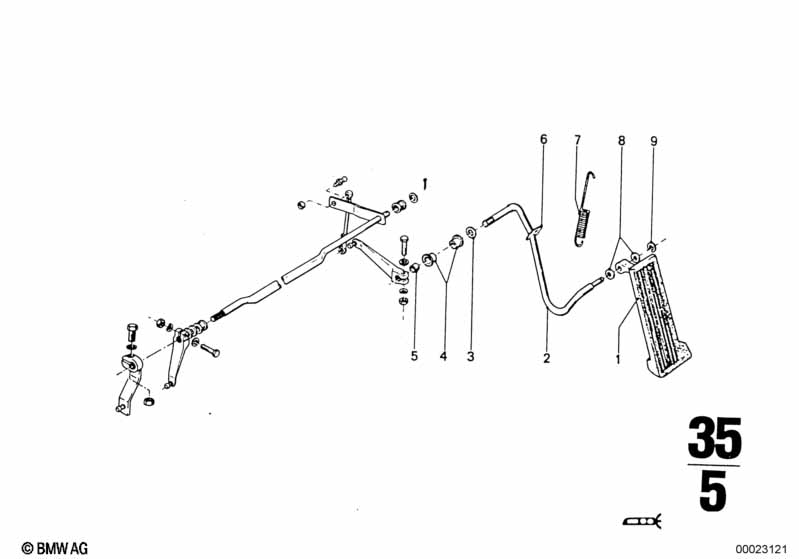

This Accelerator pedal technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator pedal assy | 1 | 07/1969 | 02/1977 | 35411105414 | $24.55 | Shop at ECS Tuning | |||
| 02 | Lever | 1 | 07/1969 | 02/1977 | 35411105625 | ENDED | Shop at ECS Tuning | |||
| 03 | Lever | 1 | 07/1969 | 02/1977 | 35411112276 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Spring | X | 07/1969 | 02/1977 | 35411106271 | $8.04 | ENDED | Shop at ECS Tuning | ||
| 04 | Bushing | D=10MM | 2 | 35411100674 | $0.80 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spring | X | 35411106271 | $8.04 | ENDED | Shop at ECS Tuning | ||||
| 05 | Spacer bush | 1 | 35411100663 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spring | X | 35411106271 | $8.04 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shackle | 1 | 35411102186 | $0.75 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spring | X | 35411106271 | $8.04 | ENDED | Shop at ECS Tuning | ||||
| 07 | Tension spring | 1 | 35411106273 | $1.38 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spring | X | 35411106271 | $8.04 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | 8,4X16X1,6-ZNNV | 2 | 07/1969 | 02/1977 | 07119907030 | Shop at ECS Tuning | |||
| 09 | Circlip | D8,0 | 1 | 07/1969 | 02/1977 | 07129934208 | $0.87 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
