Accelerator pedal for BMW 2500-3.3Li 2800 (1971)

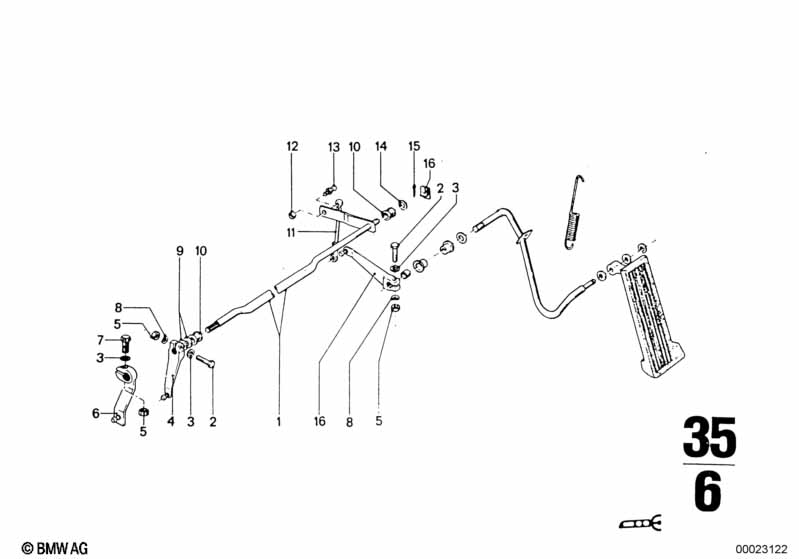

This Accelerator pedal technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft | 1 | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lever | X | 35411113148 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X28-8.8-ZNS | 2 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 02 | Hex bolt | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 03 | Tooth washer | J6,4 | 2 | 07119936134 | $0.67 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M6-10 ZN | 1 | 02/1977 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 02/1977 | 35411109668 | ENDED | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 05 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 06 | Lever | 1 | 35411113148 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X22-8.8-ZNS3 | 1 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 08 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 09 | Shim | 2 | 34213660163 | $1.27 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 10 | Bush | 2 | 35411102805 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 11 | Rod | 1 | 07/1969 | 09/1973 | 35411110107 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 07/1969 | 09/1973 | 35411109668 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex nut | M5 | 1 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 14 | Washer | 12-200 HV-ZNS3 | 1 | 07119906063 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 15 | Split pin | 4X18 | 1 | 07119945218 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 16 | Clamp | 1 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Shaft | X | 35411109668 | ENDED | Shop at ECS Tuning | |||||
| 17 | Lever | 1 | 07/1969 | 02/1977 | 35411110478 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
