Accelerator pedal - stopper for BMW 2500-3.3Li 3.0Si (1973)

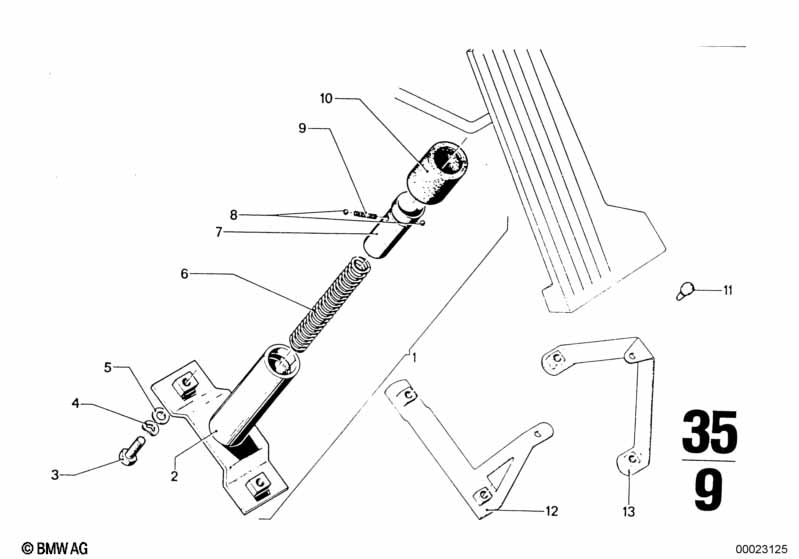

This Accelerator pedal - stopper technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Hex bolt | M6X16-SB | 2 | 07119913554 | $4.40 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 05 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 11 | Clutch pedal stop buffer | 1 | 08/1968 | 02/1977 | 35311103849 | $0.73 | Shop at ECS Tuning | |||
| 13 | Stopper | 1 | 08/1968 | 02/1977 | 35411109154 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
