Pedals-supporting bracket for BMW 5 Series E39 523i (2000)

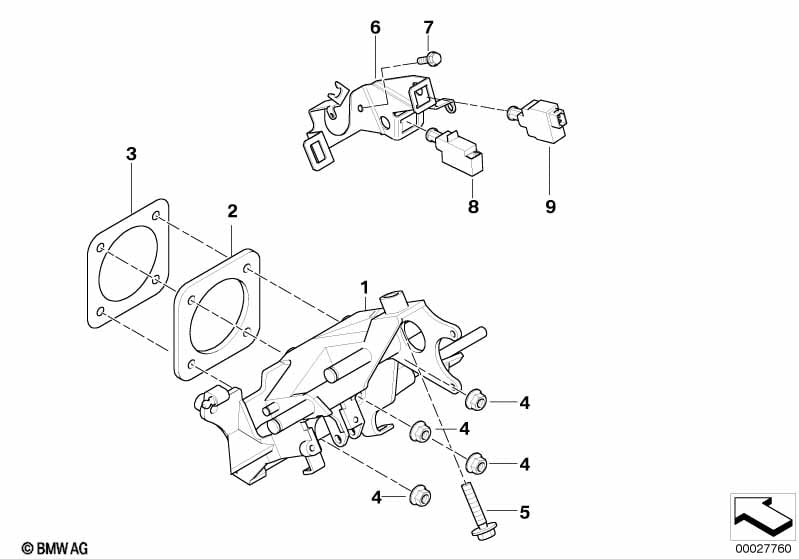

This Pedals-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket, foot controls | LSC | 1 | 09/1997 | 35101164854 | $52.63 | +core | Shop at ECS Tuning | ||
| 02 | Gasket | D=70MM | 1 | 09/1997 | 35111165132 | $3.10 | Shop at ECS Tuning | |||
| 04 | Hex nut with plate | M8 | 1 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Self-locking collar nut | M8-10 ZNS3 | 2 | 09/1997 | 07119905374 | Shop at ECS Tuning | ||||
| 06 | Bracket f stop light and clutch switch | 1 | 01/2000 | 35116752784 | $6.57 | Shop at ECS Tuning | ||||
| see Image Text Unit CLUTCH CONTROL |
||||||||||
| 07 | Hex bolt with washer | M6X20-Z3 | 2 | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Stop light switch | 1 | 09/1998 | 61316967601 | $32.07 | Shop at ECS Tuning | ||||
