Acceleration/accelerator pedal module for BMW 3 Series E46 325xi (2001)

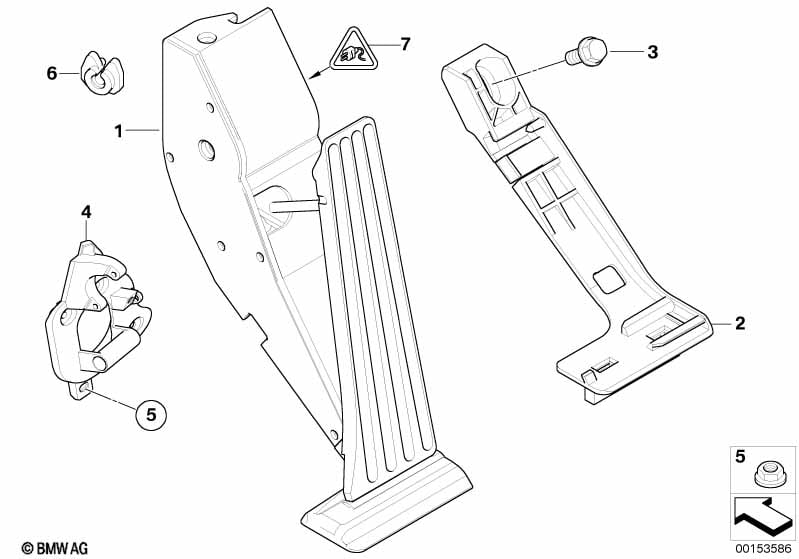

This Acceleration/accelerator pedal module technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator pedal module | 1 | 35426786281 | $139.52 | Shop at ECS Tuning | |||||
| 01 | Accelerator pedal module | 1 | 35426786282 | $133.58 | Shop at ECS Tuning | |||||
| 01 | Accelerator pedal module | 1 | 05/2001 | 35426786281 | $139.52 | Shop at ECS Tuning | ||||
| 01 | Accelerator pedal module | 1 | 05/2001 | 35426786282 | $133.58 | Shop at ECS Tuning | ||||
| 02 | Adapter plate, accelerator pedal module | 1 | 35426772703 | $9.53 | Shop at ECS Tuning | |||||
| 02 | Adapter plate, accelerator pedal module | 1 | 05/2001 | 35426772703 | $9.53 | Shop at ECS Tuning | ||||
| 03 | Torx-bolt with washer | M8X20 ZNNIV SI | 1 | 07129905423 | $0.55 | Shop at ECS Tuning | ||||
| 04 | Accelerator pedal bracket | 1 | 09/2003 | 35411163875 | $4.92 | Shop at ECS Tuning | ||||
| Cup STEERING COLUMN |
||||||||||
| 06 | Blind plug | D=25MM | 1 | 35411163890 | $1.75 | Shop at ECS Tuning | ||||
| 07 | Universal socket housing uncoded | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 6 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
