Pedal assembly for BMW 5 Series E60 LCI 523Li (2009)

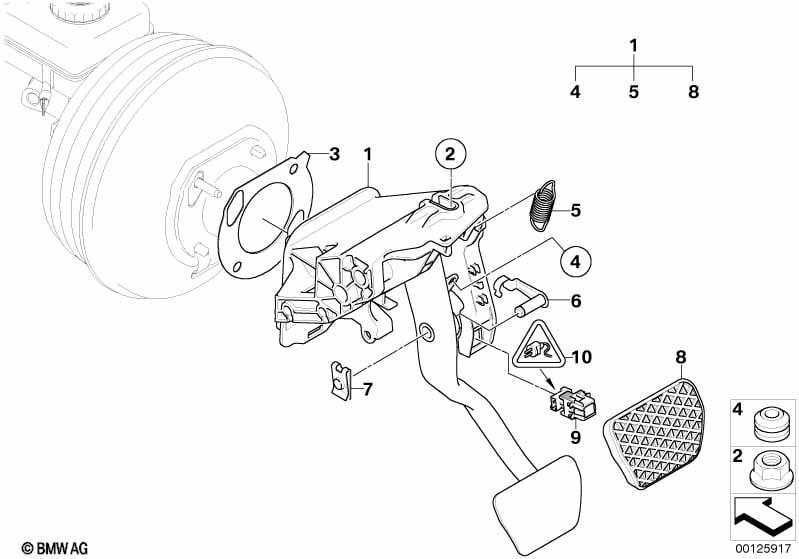

This Pedal assembly technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sport automatic transmission or Automatic transmission |
S2TBA=Yes S205A=Yes |
||||||||
| No further intervention permitted | ||||||||||
| 01 | Complete pedal assembly | 1 | 35006769221 | $90.55 | +core | Shop at ECS Tuning | ||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Seal, brake booster | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| 04 | Grommet | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Brake pedal return spring | 1 | 35216753829 | $1.90 | Shop at ECS Tuning | |||||
| 06 | Secuirng pin | D=10X29,5/PBX | 1 | 35216753830 | $2.68 | Shop at ECS Tuning | ||||
| 07 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Rubber pad | B=100MM | 1 | 35211160421 | $4.47 | Shop at ECS Tuning | ||||
| 09 | Stop light switch | 1 | 61316967601 | $32.07 | Shop at ECS Tuning | |||||
| 10 | Universal socket housing uncoded | 4 POL. | X | 09/2010 | 61138380696 | $0.93 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 09/2010 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 09/2010 | 61130056960 | Shop at ECS Tuning | ||||
| 10 | Rep. kit for socket housing | 4 POL. | X | 61132359994 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
