Foot lever mech. with return spring for BMW 5 Series E60 530i (2007)

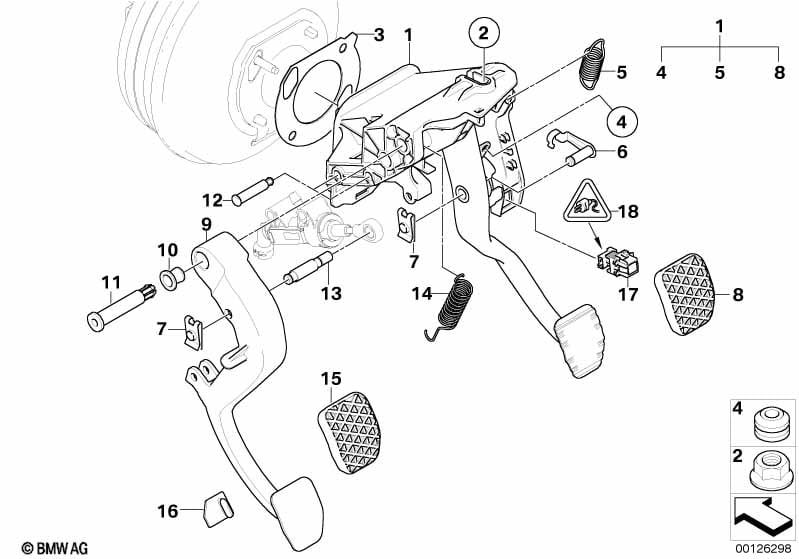

This Foot lever mech. with return spring technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to manual gearbox | |||||||||
| No further intervention permitted | ||||||||||
| 01 | Pedal assembly with brake pedal | 1 | 35002282325 | $120.78 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clutch pedal pin | D=14MM/L=78MM | 1 | 35306759942 | $2.25 | Shop at ECS Tuning | ||||
| -- | Pin, master cylinder | D=12MM/L=61MM | 1 | 21521161729 | $1.72 | Shop at ECS Tuning | ||||
| -- | Pin, master cylinder | D=9MM/L=48MM | 1 | 21526759940 | $1.37 | Shop at ECS Tuning | ||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Seal, brake booster | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| 04 | Grommet | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Brake pedal return spring | 1 | 35216753829 | $1.90 | Shop at ECS Tuning | |||||
| 06 | Secuirng pin | D=10X29,5/PBX | 1 | 35216753830 | $2.68 | Shop at ECS Tuning | ||||
| POWER BRAKE UNIT | ||||||||||
| 07 | Fuse | B10-ZNS3 | 2 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Flat fuses | B10-ZNS3 | 2 | 35206779548 | $0.34 | Shop at ECS Tuning | ||||
| 08 | Rubber pad | 1 | 35211160422 | $4.47 | Shop at ECS Tuning | |||||
| 09 | Clutch pedal | 1 | 35311161586 | $34.60 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clutch pedal pin | D=14MM/L=78MM | 1 | 35306759942 | $2.25 | Shop at ECS Tuning | ||||
| -- | Pin, master cylinder | D=12MM/L=61MM | 1 | 21521161729 | $1.72 | Shop at ECS Tuning | ||||
| 10 | Bushing | 2 | 35211158290 | $1.52 | Shop at ECS Tuning | |||||
| 11 | Clutch pedal pin | D=14MM/L=78MM | 1 | 35306759942 | $2.25 | Shop at ECS Tuning | ||||
| 12 | Pin, master cylinder | D=9MM/L=48MM | 2 | 21526759940 | $1.37 | Shop at ECS Tuning | ||||
| 13 | Pin, master cylinder | D=12MM/L=61MM | 1 | 21521161729 | $1.72 | Shop at ECS Tuning | ||||
| 14 | Clutch lever return spring | D=18MM | 1 | 35311165749 | $1.65 | Shop at ECS Tuning | ||||
| 15 | Rubber pad | 1 | 35211108634 | $4.07 | Shop at ECS Tuning | |||||
| 16 | Clutch pedal stop buffer | 1 | 35306759939 | $1.43 | Shop at ECS Tuning | |||||
| 17 | Stop light switch | 1 | 61316967601 | $32.07 | Shop at ECS Tuning | |||||
| 18 | Universal socket housing uncoded | 4 POL. | X | 07/2010 | 61138380696 | $0.93 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 07/2010 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 07/2010 | 61130056960 | Shop at ECS Tuning | ||||
| 18 | Rep. kit for socket housing | 4 POL. | X | 61132359994 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
