Brake linkage-Engine compartment for BMW 7 Series E32 740iL (1994)

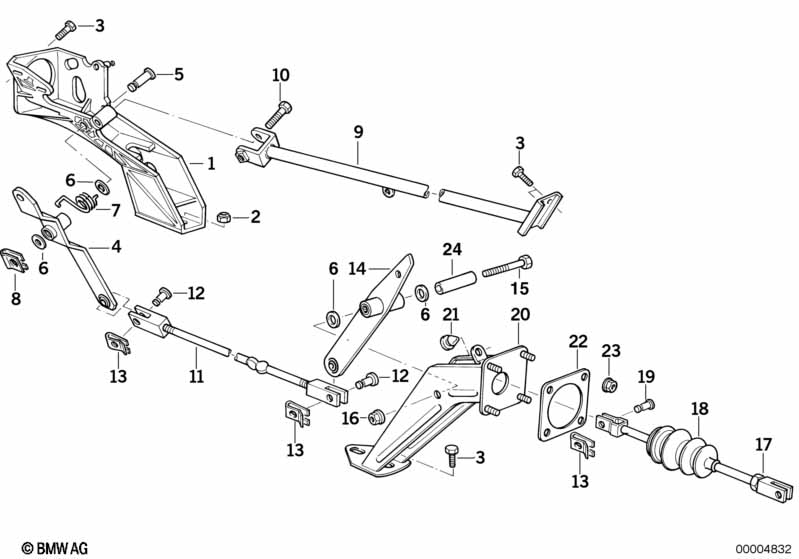

This Brake linkage-Engine compartment technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 35211161303 | $71.90 | ENDED | Shop at ECS Tuning | ||||
| 02 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X16 | 6 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Deflection lever | 1 | 35211161322 | $46.28 | Shop at ECS Tuning | |||||
| 05 | Pin | 1 | 35211161325 | $9.52 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 14,2X25X1,5 | 4 | 35211156993 | $0.48 | Shop at ECS Tuning | ||||
| 07 | Retainer spring | 1 | 35211162853 | $2.52 | Shop at ECS Tuning | |||||
| 08 | Clamp | B14 | 2 | 07129934931 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Support tube | 1 | 35211161305 | $45.18 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M10X55-10.9ZNS3 | 1 | 07119905161 | $0.96 | Shop at ECS Tuning | ||||
| 11 | Pull rod | 1 | 35211161320 | $6.12 | Shop at ECS Tuning | |||||
| 12 | Pin | 2 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 13 | Fuse | B10-ZNS3 | 3 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Deflection lever | 1 | 35211161317 | $46.28 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M10X60 | 1 | 07119921502 | $1.18 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M10X60-10.9ZNS3 | 1 | 07119905162 | $1.78 | Shop at ECS Tuning | ||||
| 16 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Rod | 1 | 35211161314 | $26.17 | ENDED | Shop at ECS Tuning | ||||
| 18 | Cup | 1 | 35211150713 | $4.75 | Shop at ECS Tuning | |||||
| 19 | Pin | 1 | 35211161324 | $1.52 | Shop at ECS Tuning | |||||
| 20 | Supporting bracket | 1 | 35211161309 | $43.00 | Shop at ECS Tuning | |||||
| 21 | Clutch pedal stop buffer | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 22 | Gasket | 1 | 35111150370 | $0.95 | Shop at ECS Tuning | |||||
| 23 | Self-locking collar nut | M8-8-ZNS3 | 4 | 07/2007 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 23 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 24 | Spacer sleeve | L=40,5MM | 1 | 35211157231 | $8.42 | Shop at ECS Tuning |
