Accelerator pedal/bowden cable LHD for BMW 3 Series E36 328i (1996)

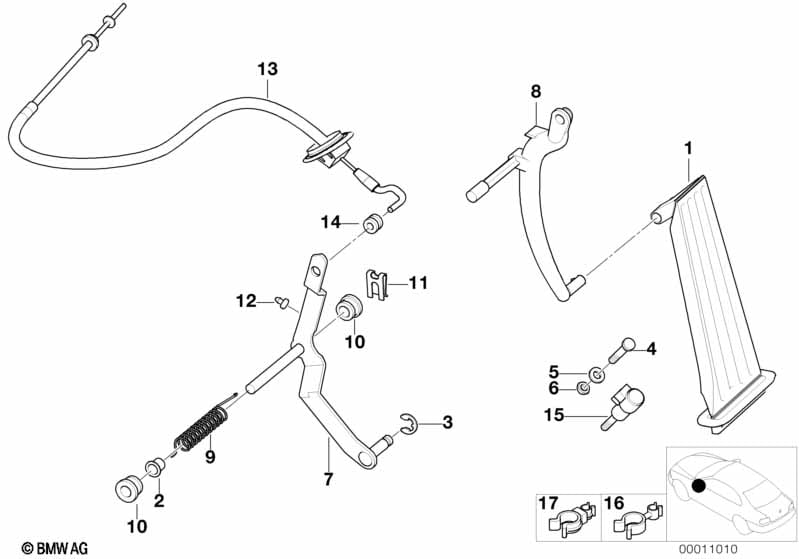

This Accelerator pedal/bowden cable LHD technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator pedal assy | 1 | 35411158855 | $26.33 | Shop at ECS Tuning | |||||
| 02 | Bushing | D=10MM | 1 | 35411100674 | $0.80 | Shop at ECS Tuning | ||||
| 03 | Circlip | 1 | 07119904622 | $1.28 | Shop at ECS Tuning | |||||
| 03 | Circlip | 8,0 | 1 | 07119932863 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Knurled bolt | M8X71MM | 1 | 35411157679 | $1.17 | Shop at ECS Tuning | ||||
| 05 | Cover | D=36MM | 1 | 35411156142 | $0.52 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Shaft | D=10MM | 1 | 02/1997 | 35411159111 | $18.13 | ENDED | Shop at ECS Tuning | ||
| 09 | Retainer spring | 1 | 02/1997 | 35411159803 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Bushing | D=10,2MM | 2 | 02/1997 | 35411119016 | $0.65 | Shop at ECS Tuning | |||
| Holder see Image Text Unit STEERING COLUMN-COLUMN TUBE/ATTACH.P. |
||||||||||
| 11 | Circlip | B8 | 1 | 02/1997 | 07129904492 | Shop at ECS Tuning | ||||
| 12 | Clutch pedal stop buffer | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 13 | Accelerator bowden cable | 1 | 35411163228 | $31.52 | Shop at ECS Tuning | |||||
| 14 | Rubber grommet | D=10MM | 1 | 35411152331 | $1.17 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | D=13MM/6MM | 1 | 11781716118 | $1.18 | Shop at ECS Tuning | ||||
| 17 | Tandem clamp | D=12MM/7MM | 1 | 13311717075 | $1.73 | ENDED | Shop at ECS Tuning | |||
