Pedals-supporting bracket for BMW 3 Series E36 325i (1993)

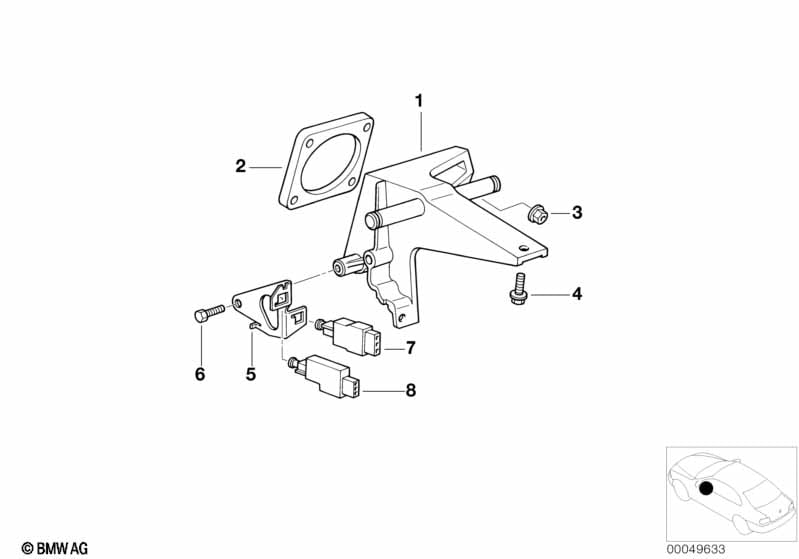

This Pedals-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket, foot controls | 1 | 03/1997 | 35116759771 | $43.00 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 90X90MM / >6| 1 |
|
| 35111157482 |
$0.80 |
|
|
Shop at ECS Tuning
|
|
| 03 | Self-locking collar nut | M8-8-ZNS3 | 4 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X25 | 1 | 35111159060 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Bracket f stop light and clutch switch | 1 | 35211159051 | $6.78 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 06 | Hex bolt with washer | M6X40-Z3 | 1 | 07119913951 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Stop light switch | 4-POLIG/MECH. | 1 | 61318360417 | $32.07 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325i Pedals-supporting bracket?
- This technical diagram illustrates the Pedals-supporting bracket within the Pedals group for the 3 Series E36 325i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket, foot controls (Part #35116759771).
- Which models use the hardware listed in this Pedals-supporting bracket?
- The hardware and components featured in the Pedals-supporting bracket are specific to the 3 Series E36 325i produced during 1993. These technical specifications ensure that parts like the Supporting bracket, foot controls (35116759771) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals-supporting bracket assembly?
- Each item in the Pedals-supporting bracket corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the Supporting bracket, foot controls by locating its position on the schematic, which then links to the official BMW part number 35116759771 for the Pedals section.
