Pedals supporting bracket/brake pedal for BMW 3 Series E36 318ti (1995)

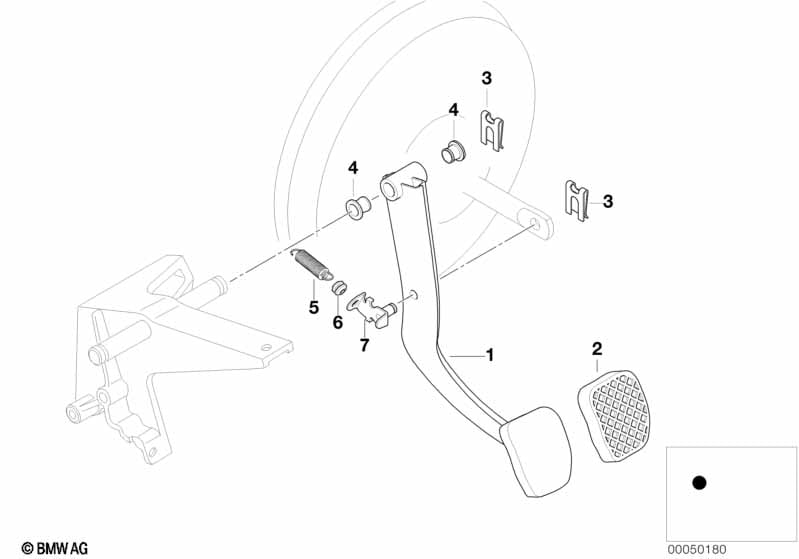

This Pedals supporting bracket/brake pedal technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 01 | Brake pedal | 1 | 35211158386 | $31.48 | Shop at ECS Tuning | |||||
| 02 | Rubber pad | 1 | 35211160422 | $4.47 | Shop at ECS Tuning | |||||
| 03 | Fuse | B10-ZNS3 | 2 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Bushing | 2 | 35211158290 | $1.52 | Shop at ECS Tuning | |||||
| 05 | Return spring | 1 | 35211158489 | $1.52 | ENDED | Shop at ECS Tuning | ||||
| 06 | Grommet | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Pin | 1 | 34331158496 | $4.95 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Pedals supporting bracket/brake pedal?
- This technical diagram illustrates the Pedals supporting bracket/brake pedal within the Pedals group for the 3 Series E36 318ti produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Brake pedal (Part #35211158386).
- Which models use the hardware listed in this Pedals supporting bracket/brake pedal?
- The hardware and components featured in the Pedals supporting bracket/brake pedal are specific to the 3 Series E36 318ti produced during 1995. These technical specifications ensure that parts like the Brake pedal (35211158386) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals supporting bracket/brake pedal assembly?
- Each item in the Pedals supporting bracket/brake pedal corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Brake pedal by locating its position on the schematic, which then links to the official BMW part number 35211158386 for the Pedals section.
