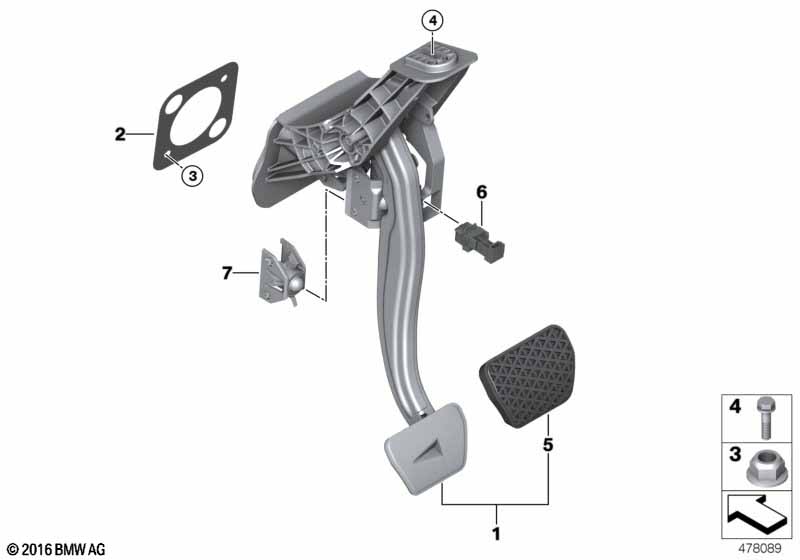

Pedal assembly, automatic transmission for BMW 7 Series G12 740Li (2018)
This Pedal assembly, automatic transmission technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Complete pedal assembly | 1 | 35006861772 | Shop at ECS Tuning | ||||||
| 02 | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| Mount Supporting bracket |
||||||||||
| 04 | Hex bolt with washer | M8X25-PC-U2-8.8 | 1 | 07119908735 | Shop at ECS Tuning | |||||
| Mount Supporting bracket |
||||||||||
| 05 | Rubber pad | B=100MM | 1 | 35211160421 | $4.47 | Shop at ECS Tuning | ||||
| 06 | Stop light switch | 1 | 35006876896 | Shop at ECS Tuning | ||||||
| 07 | Ball head mount | 1 | 35006891934 | Shop at ECS Tuning | ||||||
| Mount POWER BRAKE UNIT |
||||||||||
