Pedal assembly, automatic transmission for BMW 5 Series G30 LCI 530iX (2022)

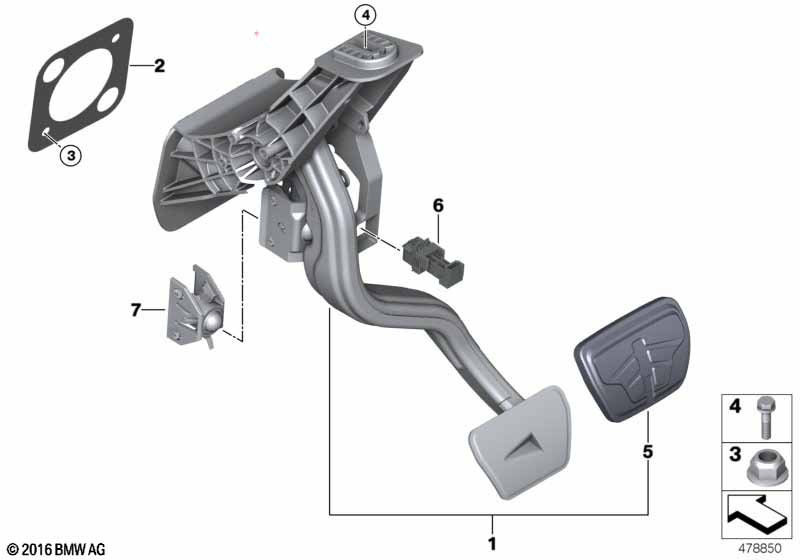

This Pedal assembly, automatic transmission technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports package or M Sports package or M Sport or Modell M Sport or M Sport or M Sport Edition or BMW Individual komp. mit M Sport um or MODEL M SPORT INDIVIDUAL or M Aerodynamics package |
P336A=Yes P337A=Yes P33AA=Yes P7LFA=Yes P7LNA=Yes P7MHA=Yes PXC5A=Yes PXC6A=Yes S715A=Yes |
||||||||
| For vehicles with Energy recovery system and M Sport brakes |
S1CEA=No S2NHA=No |
|||||||||
| 01 | Complete pedal assembly | 1 | 35006861771 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Rubber pad with stainless steel inlay | 1 | 35216885852 | Shop at ECS Tuning | ||||||
| Stainless steel inlay use |
||||||||||
| 02 | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| Mount Supporting bracket |
||||||||||
| 04 | Hex bolt with washer | M8X25-PC-U2-8.8 | 1 | 07119908735 | Shop at ECS Tuning | |||||
| Mount Supporting bracket |
||||||||||
| 05 | Rubber pad with stainless steel inlay | 1 | 35216885852 | Shop at ECS Tuning | ||||||
| 06 | Stop light switch | 1 | 35006876896 | Shop at ECS Tuning | ||||||
| 07 | Ball head mount | 1 | 35006891934 | Shop at ECS Tuning | ||||||
| Mount POWER BRAKE UNIT |
||||||||||
