Pedal assembly, automatic transmission for BMW MINI Cabrio F57 LCI JCW (2024)

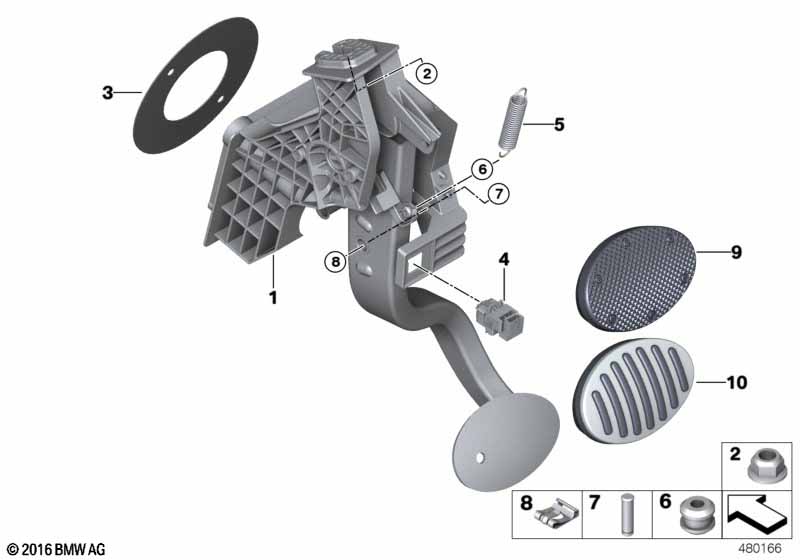

This Pedal assembly, automatic transmission technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Complete pedal assembly | 1 | 35006858613 | Shop at ECS Tuning | ||||||
| complete with attachment parts | ||||||||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| Mount Supporting bracket |
||||||||||
| 03 | Seal, brake booster | 1 | 34336857618 | Shop at ECS Tuning | ||||||
| 04 | Stop light switch | 1 | 35006876896 | Shop at ECS Tuning | ||||||
| 05 | Tension spring | 1 | 35006860668 | Shop at ECS Tuning | ||||||
| 06 | Grommet | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Brake pedal pin | 1 | 34336772928 | $0.66 | Shop at ECS Tuning | |||||
| Mount POWER BRAKE UNIT |
||||||||||
| 08 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| Mount POWER BRAKE UNIT |
||||||||||
| 10 | Rubber pad with stainless steel inlay | 1 | 35006860690 | Shop at ECS Tuning | ||||||
