Acceleration/accelerator pedal module for BMW 5 Series E39 525i (2003)

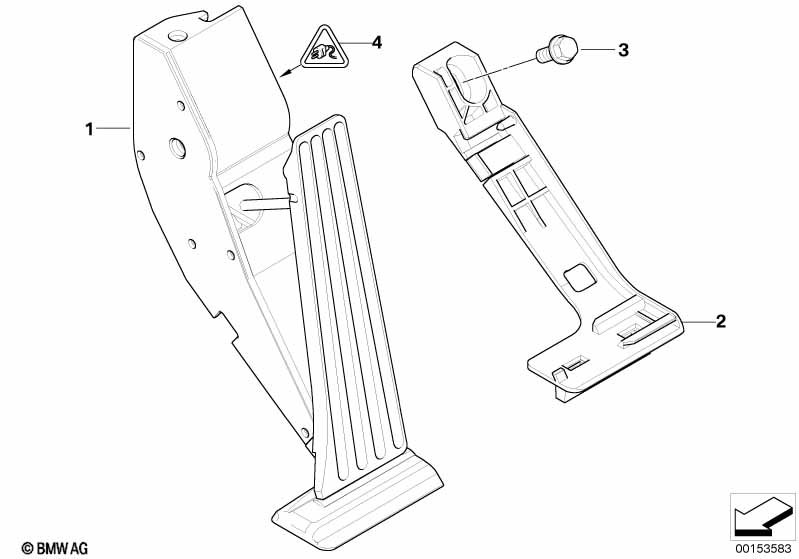

This Acceleration/accelerator pedal module technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Accelerator pedal module | 1 | 10/2001 | 35426786282 | $133.58 | Shop at ECS Tuning | ||||
| 02 | Adapter plate, accelerator pedal module | 1 | 10/2001 | 35426772702 | $8.45 | Shop at ECS Tuning | ||||
| 03 | Torx-bolt with washer | M8X20 ZNNIV SI | 1 | 07129905423 | $0.55 | Shop at ECS Tuning | ||||
| 04 | Universal socket housing uncoded | 6 POL. | 6 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Acceleration/accelerator pedal module?
- This technical diagram illustrates the Acceleration/accelerator pedal module within the Pedals group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Accelerator pedal module (Part #35426786282).
- Which models use the hardware listed in this Acceleration/accelerator pedal module?
- The hardware and components featured in the Acceleration/accelerator pedal module are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Accelerator pedal module (35426786282) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Acceleration/accelerator pedal module assembly?
- Each item in the Acceleration/accelerator pedal module corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Accelerator pedal module by locating its position on the schematic, which then links to the official BMW part number 35426786282 for the Pedals section.
