Pedal assembly, automatic transmission for BMW 6 Series G32 GT LCI 630i (2023)

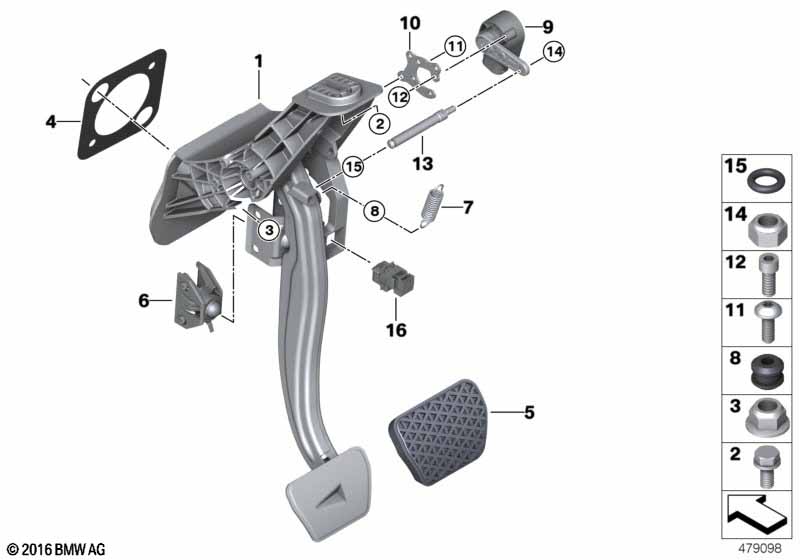

This Pedal assembly, automatic transmission technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT LCI 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package |
P337A=No |
||||||||
| For vehicles with Energy recovery system or M Sport brakes |
S1CEA=Yes S2NHA=Yes |
|||||||||
| 01 | Complete pedal assembly | 48V | 1 | 35006873122 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M8X25-8.8-ZNNIV | 1 | 07119905394 | $0.64 | Shop at ECS Tuning | ||||
| Mount Supporting bracket |
||||||||||
| 03 | Self-locking collar nut | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| Mount Supporting bracket |
||||||||||
| 04 | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| 05 | Rubber pad | B=100MM | 1 | 35211160421 | $4.47 | Shop at ECS Tuning | ||||
| BRAKE PEDAL | ||||||||||
| 06 | Ball head mount | 1 | 35006891934 | Shop at ECS Tuning | ||||||
| Mount POWER BRAKE UNIT |
||||||||||
| 07 | Brake pedal return spring | 1 | 35216772695 | $4.92 | Shop at ECS Tuning | |||||
| 08 | Grommet | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| BRAKE PEDAL | ||||||||||
| 09 | Brake pedal travel sensor | 1 | 35006855309 | Shop at ECS Tuning | ||||||
| 10 | Bracket for brake pedal travel sensor | 1 | 35006861781 | Shop at ECS Tuning | ||||||
| 11 | Fillister head self-tapping screw | 5X14 | 3 | 07146973628 | Shop at ECS Tuning | |||||
| Mount BRACKET |
||||||||||
| 12 | ISA screw | M5X10 | 2 | 07129904491 | Shop at ECS Tuning | |||||
| Mount Sensor |
||||||||||
| 13 | Pin for brake pedal travel sensor | 1 | 35006866489 | Shop at ECS Tuning | ||||||
| 14 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| Mount Driver |
||||||||||
| 15 | O-ring | 5X2 | 1 | 11421284113 | $0.79 | Shop at ECS Tuning | ||||
| 16 | Stop light switch | 1 | 35006876896 | Shop at ECS Tuning | ||||||
