Steel rim for BMW 5 Series E12 525 (1981)

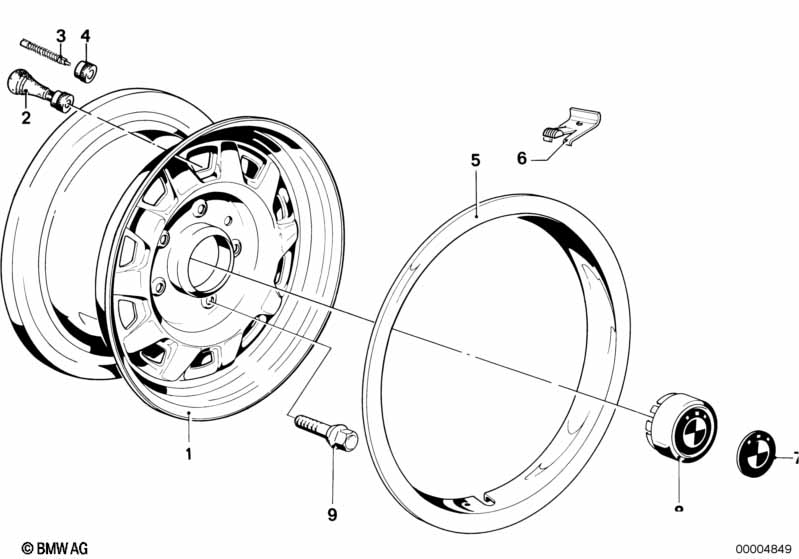

This Steel rim technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steel rim | 6JX14 ET:22 | 5 | 08/1977 | 36111117251 | $84.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Steel rim | 51/2JX14 ET:22 | 5 | 08/1977 | 36111119682 | $103.79 | ENDED | Shop at ECS Tuning | ||
| 02 | Rubber valve | L=42,5MM | 5 | 08/1977 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| 03 | Valve | 5 | 08/1977 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| 04 | Valve caps | 5 | 08/1977 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Trim ring | 4 | 08/1977 | 36131120543 | $39.70 | Shop at ECS Tuning | ||||
| 06 | Clip | X | 08/1977 | 36131122301 | $1.73 | ENDED | Shop at ECS Tuning | |||
| 07 | BMW plaque with adhesive film | D=64,5MM | 4 | 08/1977 | 36131181080 | $6.90 | Shop at ECS Tuning | |||
| 08 | Hub cap | 4 | 08/1977 | 36131117649 | $15.75 | Shop at ECS Tuning | ||||
| 09 | Wheel bolt chrome | 4 | 08/1977 | 36139063140 | $2.40 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Steel rim?
- This technical diagram illustrates the Steel rim within the Wheels group for the 5 Series E12 525 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Steel rim (Part #36111117251).
- Which models use the hardware listed in this Steel rim?
- The hardware and components featured in the Steel rim are specific to the 5 Series E12 525 produced during 1981. These technical specifications ensure that parts like the Steel rim (36111117251) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steel rim assembly?
- Each item in the Steel rim corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Steel rim by locating its position on the schematic, which then links to the official BMW part number 36111117251 for the Wheels section.
