Steel rim styl.1 for BMW 7 Series E23 735i (1982)

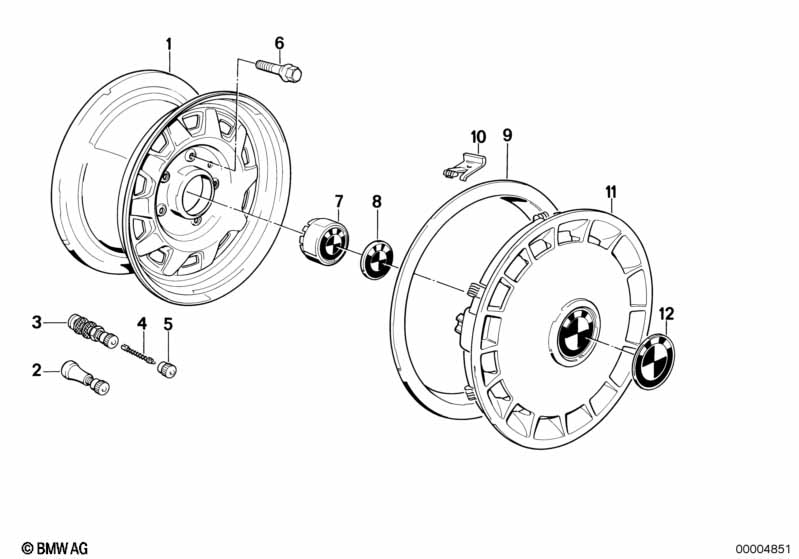

This Steel rim styl.1 technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY FOR WINTER TYRES | ||||||||||
| 01 | Steel rim silber | 61/2JX14 ET:25 | 4 | 36111119093 | $83.70 | Shop at ECS Tuning | ||||
| 01 | Steel rim trx | 165TR390 ET:22 | 4 | 36111178934 | $72.50 | ENDED, ABE 9780826, ABE 9781667, ABE 9781842 | Shop at ECS Tuning | |||
| 02 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 04 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 05 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 06 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 07 | Hub cap | 4 | 09/1982 | 36131117649 | $15.75 | Shop at ECS Tuning | ||||
| 07 | Hub cap | D=104MM | 4 | 36131179141 | $17.25 | ENDED | Shop at ECS Tuning | |||
| 08 | BMW plaque with adhesive film | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| 09 | Trim ring | 4 | 09/1982 | 36131120543 | $39.70 | Shop at ECS Tuning | ||||
| 10 | Clip | 4 | 09/1982 | 36131122301 | $1.73 | ENDED | Shop at ECS Tuning | |||
| 11 | Wheel cover | D=392MM | 4 | 36131180667 | $42.66 | Shop at ECS Tuning | ||||
| 11 | Wheel cover | D=375MM | 4 | 36131178778 | $38.50 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Steel rim | 6JX14 ET:22 | X | 36111117251 | $84.82 | ENDED | Shop at ECS Tuning | |||
| -- | Steel rim silber | 61/2JX14 ET:25 | X | 36111119093 | $83.70 | Shop at ECS Tuning | ||||
| 12 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
