Light alloy rim for BMW 3 Series E21 320i (1977)

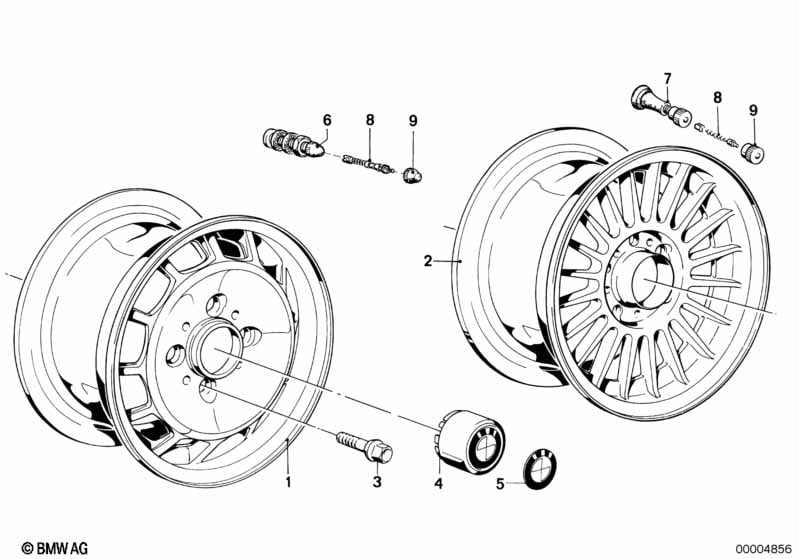

This Light alloy rim technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Light alloy rim | 51/2X13 ET:18 | 4 | 36111118306 | $225.15 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Hub cap | 4 | 36131114180 | $21.20 | Shop at ECS Tuning | |||||
| 05 | Plaque with adhesive film | D=45MM | 4 | 36131181082 | $5.78 | Shop at ECS Tuning | ||||
| 06 | Screw-in valve | 4 | 36121119332 | $6.29 | Shop at ECS Tuning | |||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Light alloy rim?
- This technical diagram illustrates the Light alloy rim within the Wheels group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36111118306).
- Which models use the hardware listed in this Light alloy rim?
- The hardware and components featured in the Light alloy rim are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Light alloy rim (36111118306) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Light alloy rim assembly?
- Each item in the Light alloy rim corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36111118306 for the Wheels section.
