Light alloy rim for BMW 6 Series E24 635CSi (1989)

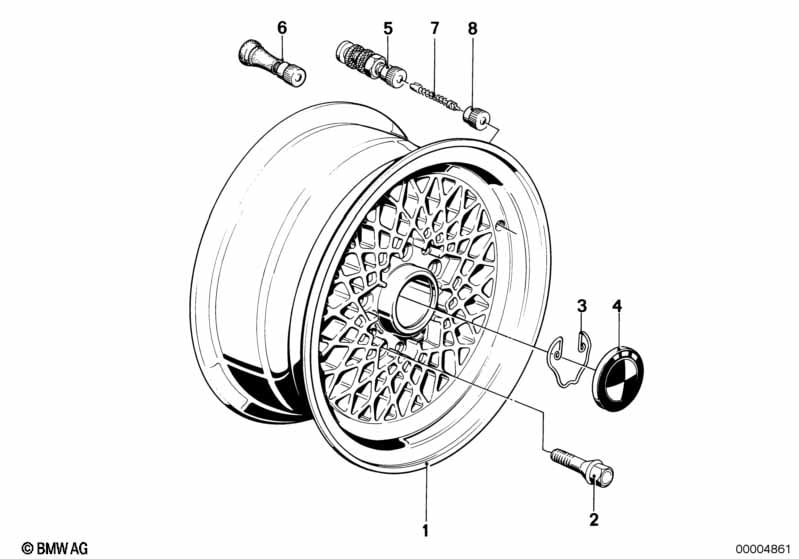

This Light alloy rim technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light alloy rim | 61/2JX14 ET:22 | 4 | 36111118772 | $282.36 | ENDED | Shop at ECS Tuning | |||
| 02 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 03 | Clip | 4 | 36131121871 | $3.35 | Shop at ECS Tuning | |||||
| 04 | Badge | D=70MM | 4 | 36131122132 | $6.54 | Shop at ECS Tuning | ||||
| 05 | Screw-in valve | 4 | 36121119332 | $6.29 | Shop at ECS Tuning | |||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
