Light alloy rim for BMW 3 Series E21 320i (1977)

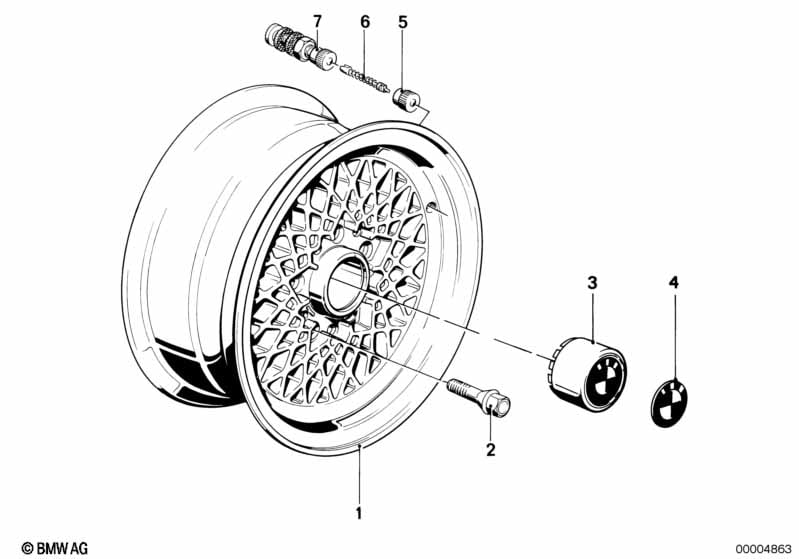

This Light alloy rim technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light alloy rim | 51/2X13 ET:18 | 4 | 36111124111 | $253.29 | ENDED | Shop at ECS Tuning | |||
| 01 | Motorsport alloy rim | 6JX13 ET:13 | 4 | 36112205138 | $348.24 | ENDED | Shop at ECS Tuning | |||
| 02 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 02 | Set wheel bolt | MOTORSPORT | X | 36139055943 | $30.93 | Shop at ECS Tuning | ||||
| 03 | Hub cap | 4 | 36131114180 | $21.20 | Shop at ECS Tuning | |||||
| 03 | Hub cap | MOTORSPORT | 4 | 36132200628 | $7.04 | Shop at ECS Tuning | ||||
| 04 | Plaque with adhesive film | D=45MM | 4 | 36131181082 | $5.78 | Shop at ECS Tuning | ||||
| 04 | Badge | MOTORSPORT | 4 | 36132202971 | $3.32 | Shop at ECS Tuning | ||||
| 05 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Screw-in valve | 4 | 36121119332 | $6.29 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
