Light alloy rim for BMW 5 Series E28 525i (1987)

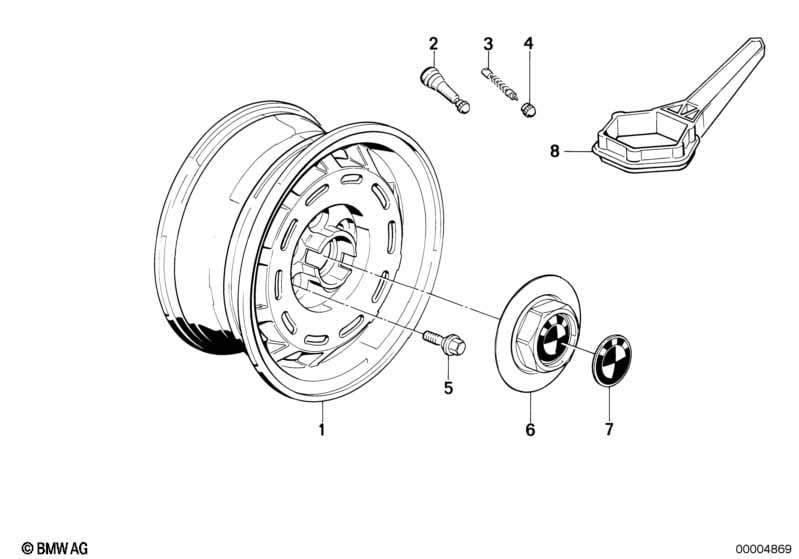

This Light alloy rim technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light alloy rim | 165TR390 ET:22 | 4 | 36111178633 | $311.36 | ENDED, ABE 9780271 | Shop at ECS Tuning | |||
| 02 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 03 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Hub cap | 4 | 04/1986 | 36131180074 | $55.97 | ENDED | Shop at ECS Tuning | |||
| 06 | Hub cap | 4 | 04/1986 | 36131180073 | $51.34 | ENDED | Shop at ECS Tuning | |||
| 07 | BMW plaque with adhesive film | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| 08 | Hub cap wrench | SW80 | 1 | 36131179325 | $9.12 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
