BMW-styling (styl.2) for BMW 5 Series E34 525tds (1996)

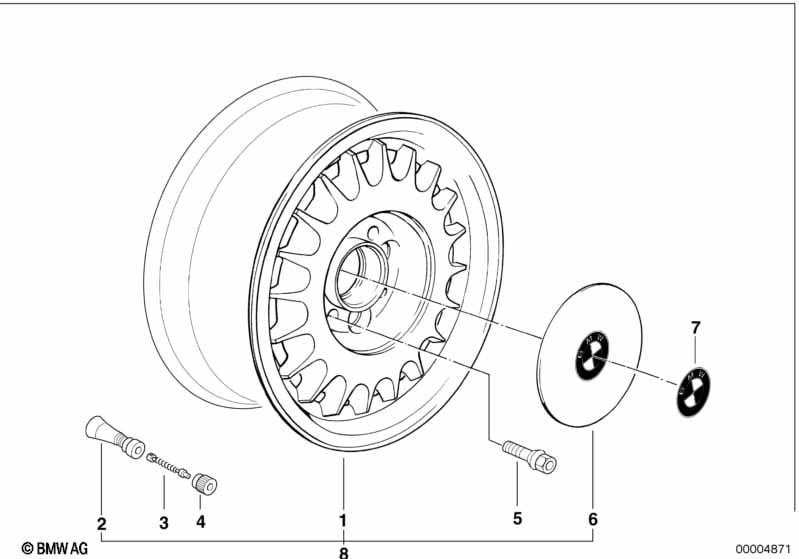

This BMW-styling (styl.2) technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light alloy rim | 7JX15 ET:20 | 4 | 36111179761 | $248.95 | ABE 9781816, ABE 9781827, ABE 9783606, ABE 9783665 | Shop at ECS Tuning | |||
| 02 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 03 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Hub cap | D=178MM | 4 | 36136768641 | $19.50 | Shop at ECS Tuning | ||||
| 07 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 08 | Light alloy rim | 7JX15 ET:20 | 4 | 85329409865 | ENDED | Shop at ECS Tuning |
Notes
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
- ENDED = the part has been discontinued (no longer available).
