Turbine styling (styl.9) for BMW 8 Series E31 850Ci (1993)

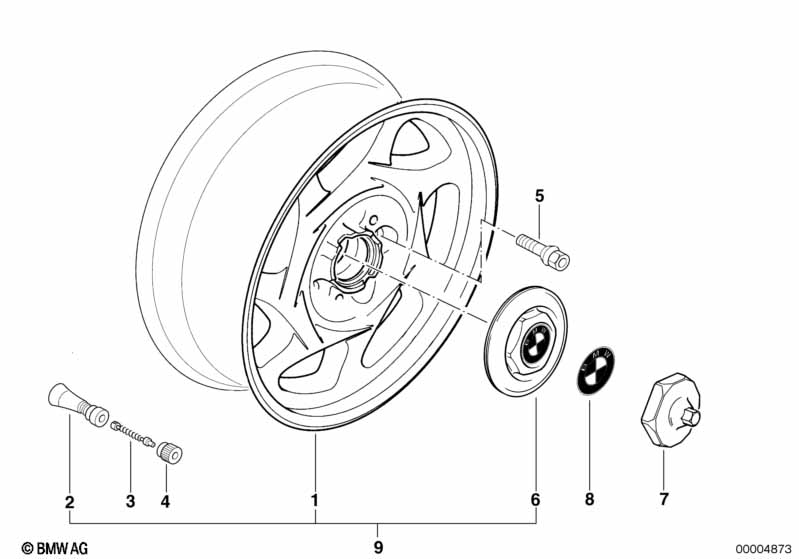

This Turbine styling (styl.9) technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Alloy rim forged left | 71/2JX16 ET:15 | 2 | 03/1994 | 36111180197 | $416.95 | ENDED | Shop at ECS Tuning | ||
| 01 | Alloy rim forged right | 71/2JX16 ET:15 | 2 | 03/1994 | 36111180198 | $416.95 | ENDED | Shop at ECS Tuning | ||
| 02 | Rubber valve | 4 | 03/1994 | 36122904161 | Shop at ECS Tuning | |||||
| 03 | Valve | 4 | 03/1994 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| 04 | Valve caps | 4 | 03/1994 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Wheel bolt black | X | 03/1994 | 36132902779 | Shop at ECS Tuning | |||||
| 06 | Hub cap | 4 | 03/1994 | 36131179985 | $19.50 | Shop at ECS Tuning | ||||
| 07 | Hub cap wrench | SW=17MM | 1 | 03/1994 | 36131180626 | $8.82 | Shop at ECS Tuning | |||
| 08 | BMW plaque with adhesive film | D=64,5MM | 4 | 03/1994 | 36131181080 | $6.90 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Turbine styling (styl.9)?
- This technical diagram illustrates the Turbine styling (styl.9) within the Wheels group for the 8 Series E31 850Ci produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Alloy rim forged left (Part #36111180197).
- Which models use the hardware listed in this Turbine styling (styl.9)?
- The hardware and components featured in the Turbine styling (styl.9) are specific to the 8 Series E31 850Ci produced during 1993. These technical specifications ensure that parts like the Alloy rim forged left (36111180197) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Turbine styling (styl.9) assembly?
- Each item in the Turbine styling (styl.9) corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Alloy rim forged left by locating its position on the schematic, which then links to the official BMW part number 36111180197 for the Wheels section.
