Star-spoke styling (styl.10) for BMW 3 Series E30 325i (1986)

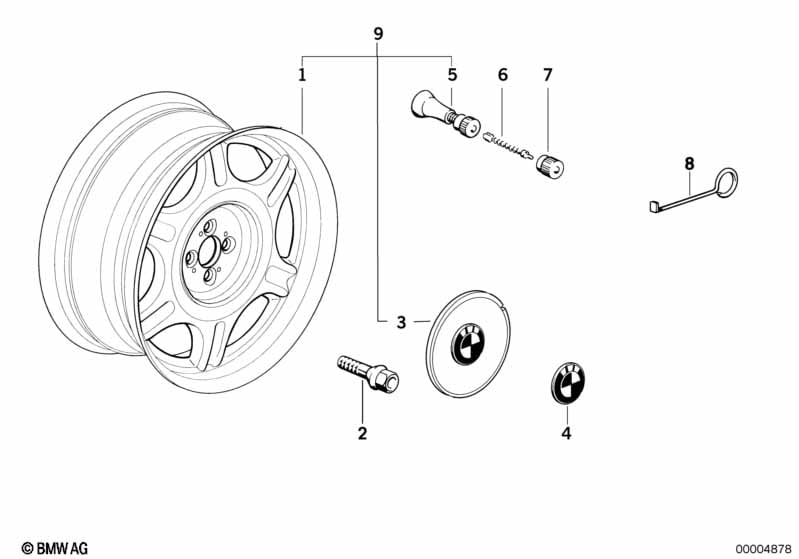

This Star-spoke styling (styl.10) technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | NOT FOR AUSTRALIA AND DANMARK | |||||||||
| 01 | Light alloy rim | 7JX15 ET:24 | 4 | 36111181240 | $359.38 | ENDED, TÜV 9785097 | Shop at ECS Tuning | |||
| 02 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 03 | Hub cap | D=159MM | 4 | 36131181288 | $19.50 | ENDED | Shop at ECS Tuning | |||
| 04 | BMW plaque with adhesive film | D=58MM | 4 | 36131181081 | $5.85 | Shop at ECS Tuning | ||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 08 | Hub cap puller | 1 | 36132294421 | $9.86 | Shop at ECS Tuning | |||||
| 09 | Light alloy rim | 7JX15 ET:24 | 4 | 82119409556 | ENDED, +core, TÜV 9785097 | Shop at ECS Tuning | ||||
