BMW-styling (styl.6) for BMW 5 Series E34 525ix (1995)

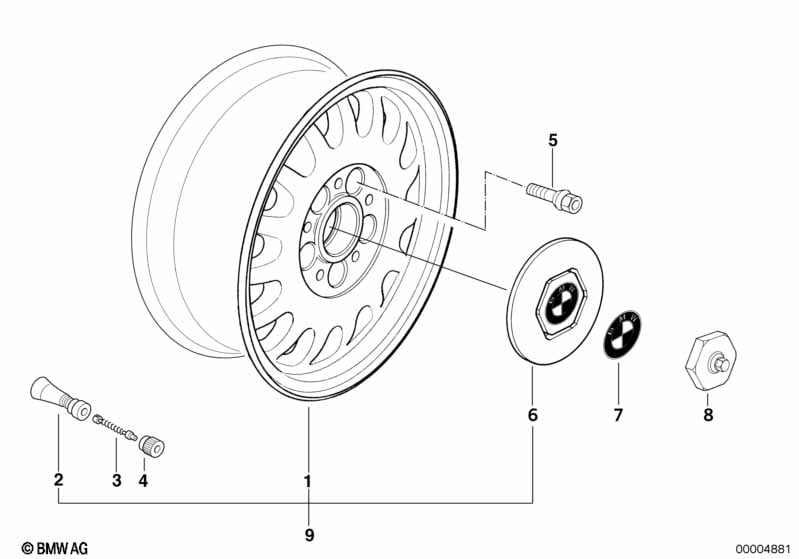

This BMW-styling (styl.6) technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light alloy rim | 71/2JX16 ET:54 | 5 | 36111180097 | $286.95 | Shop at ECS Tuning | ||||
| 02 | Rubber valve | L=42,5MM | 5 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 03 | Valve | 5 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Valve caps | 5 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Hub cap | D=169MM | 4 | 36131180113 | $19.50 | Shop at ECS Tuning | ||||
| 07 | BMW plaque with adhesive film | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| 08 | Hub cap wrench | SW=17MM | 1 | 36131180626 | $8.82 | Shop at ECS Tuning | ||||
| 09 | Light alloy rim | 71/2JX16 ET:54 | 4 | 85329409854 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
