M system II (styl.21) for BMW 5 Series E34 525td (1995)

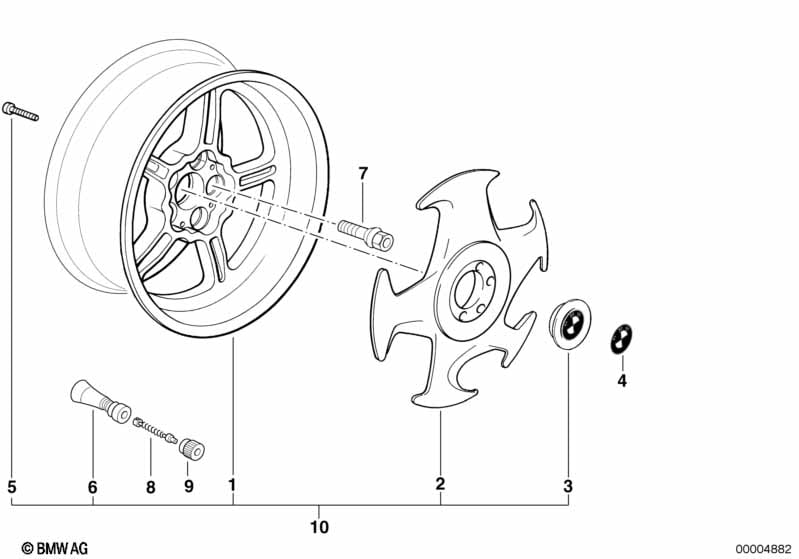

This M system II (styl.21) technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | NOT FOR AUSTRALIA AND DANMARK | |||||||||
| 01 | Alloy rim forged | 8JX17 ET:20 | 4 | 36112226706 | $462.95 | ENDED, +core, TÜV 9787468, TÜV 9787469, TÜV 9787478 | Shop at ECS Tuning | |||
| 01 | Alloy rim forged | 9JX17 ET:22 | 2 | 36112226707 | $494.95 | ENDED, +core, TÜV 9787468, TÜV 9787469 | Shop at ECS Tuning | |||
| 01 | Light alloy rim polished | 8JX17 ET:20 | 4 | 36112227743 | $432.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Light alloy rim polished | 9JX17 ET:22 | 2 | 36112227744 | $462.95 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Wheel cover, left | 2 | 36112227007 | $134.78 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wheel cover, right | 2 | 36112227008 | $134.78 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hub cap | 4 | 36132227123 | $34.00 | +core | Shop at ECS Tuning | ||||
| 04 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | M6X20 | X | 36112227124 | $1.20 | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 10 | Alloy rim forged left | 8JX17 ET:20 | 2 | 85329409867 | ENDED, TÜV 9787468, TÜV 9787469 | Shop at ECS Tuning | ||||
| 10 | Alloy rim forged right | 8JX17 ET:20 | 2 | 85329409868 | ENDED | Shop at ECS Tuning | ||||
| 10 | Alloy rim forged left | 9JX17 ET:22 | 1 | 85329409869 | ENDED | Shop at ECS Tuning | ||||
| 10 | Alloy rim forged right | 9JX17 ET:22 | 1 | 85329409870 | ENDED, TÜV 9787468, TÜV 9787469 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
