Wheel bolt lock with key for BMW 6 Series E24 633CSi (1984)

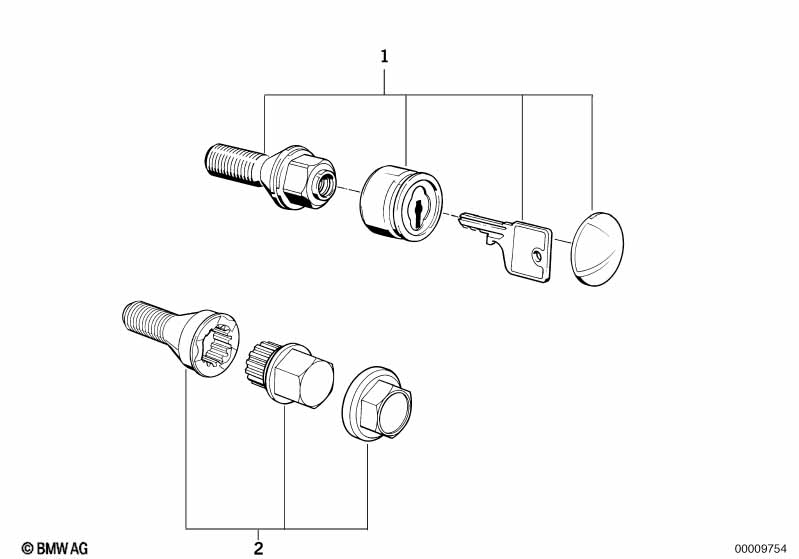

This Wheel bolt lock with key technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of locks | 1 | 36131182006 | $78.12 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set wheel locks | M12X1,5 | 1 | 36136786419 | $26.75 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Wheel bolt lock with key?
- This technical diagram illustrates the Wheel bolt lock with key within the Wheels group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Set of locks (Part #36131182006).
- Which models use the hardware listed in this Wheel bolt lock with key?
- The hardware and components featured in the Wheel bolt lock with key are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Set of locks (36131182006) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheel bolt lock with key assembly?
- Each item in the Wheel bolt lock with key corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Set of locks by locating its position on the schematic, which then links to the official BMW part number 36131182006 for the Wheels section.
