Cross-spoke stylins trx (styl.5) for BMW 7 Series E32 740iL (1994)

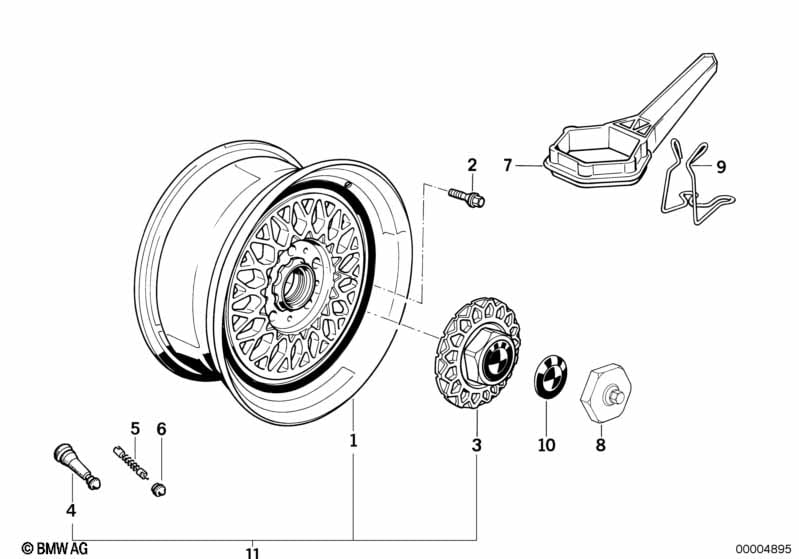

This Cross-spoke stylins trx (styl.5) technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Alloy rim forged | 195TR415 ET:19 | 4 | 36111180360 | $684.00 | Shop at ECS Tuning | ||||
| 01 | Light alloy rim polished | 195TR415 ET:19 | 4 | 36111180371 | $849.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Alloy rim forged | 195TR415 ET:19 | 4 | 36111180360 | $684.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hub cap | 4 | 36131180115 | $39.00 | Shop at ECS Tuning | |||||
| 02 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 03 | Hub cap | 4 | 36131180115 | $39.00 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Alloy rim forged | 195TR415 ET:19 | X | 36111180360 | $684.00 | ABE 9782178 | Shop at ECS Tuning | |||
| -- | Light alloy rim polished | 195TR415 ET:19 | X | 36111180371 | $849.00 | ENDED, ABE 9782178 | Shop at ECS Tuning | |||
| 04 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 05 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 06 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 08 | Hub cap wrench | SW=17MM | 1 | 36131180626 | $8.82 | Shop at ECS Tuning | ||||
| 10 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
